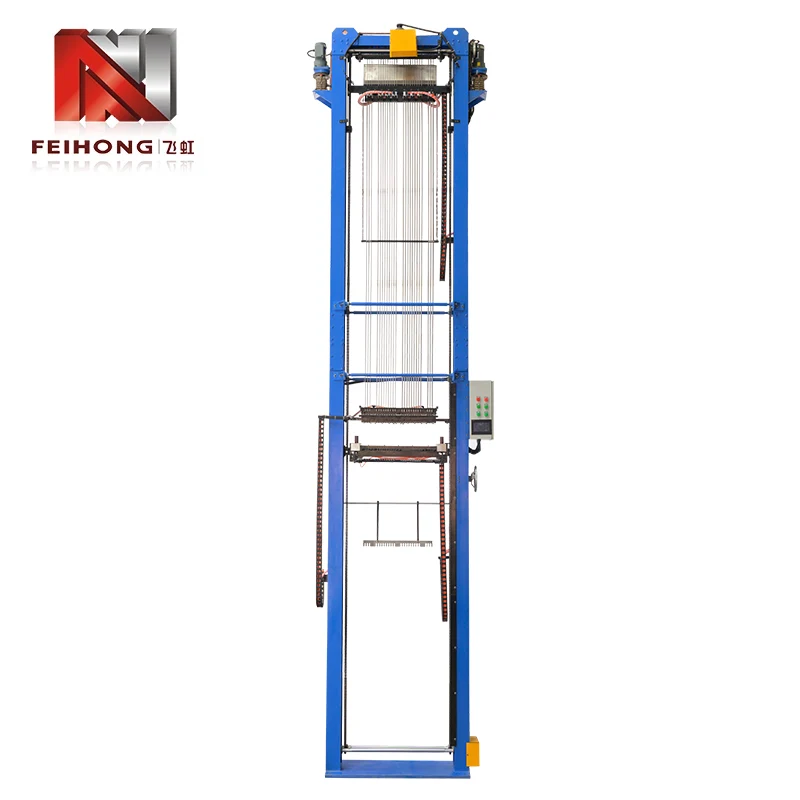

Dust-Free Triple Security Magnesium Oxide Powder Filling Machine

Main structure and properties

Dust-free triple security magnesium oxide powder filling machine is a new dust-free magnesium oxide powder filler, also known as environmental protection filler. It is designed and manufactured with reference to the characteristics of imported similar machines. This filling device is the ideal equipment for making longlong tubes at present.

Features: The new dust-free magnesium oxide powder filler is different from others. One machine can simultaneously install and operate pipes of different sizes. It can also be installed with a variety of specifications, but when operating,only operate the specifications required, the rest do not act. It is a new dust-free magnesium oxide powder filler integrating the advantages of domestic and extemal fillers.

Main technical parameters

1. Main work digits: 48, 36, 24, 12, etc.

2. Filling length (mm): 300-10000

3. Filling Diameter(mm): 7.5-42

4. One machine can be used in many sizes

5. Filling structure: conduit in Three Guarantees

6. Control mode: Servo or General Motors

7. Vibration mode: mechanical, electromagnetic

8. Shift: 1000-5000(1 meter long)

9. Voltage/air supply: Three-phase 380V/Three-phase 220V/Single-phase 220V/0.6Mpa

10. Power: 1100W

11. Machine Volume (mm): (1 meter machine) 3500*1600*800

12. Weight: 700KG
