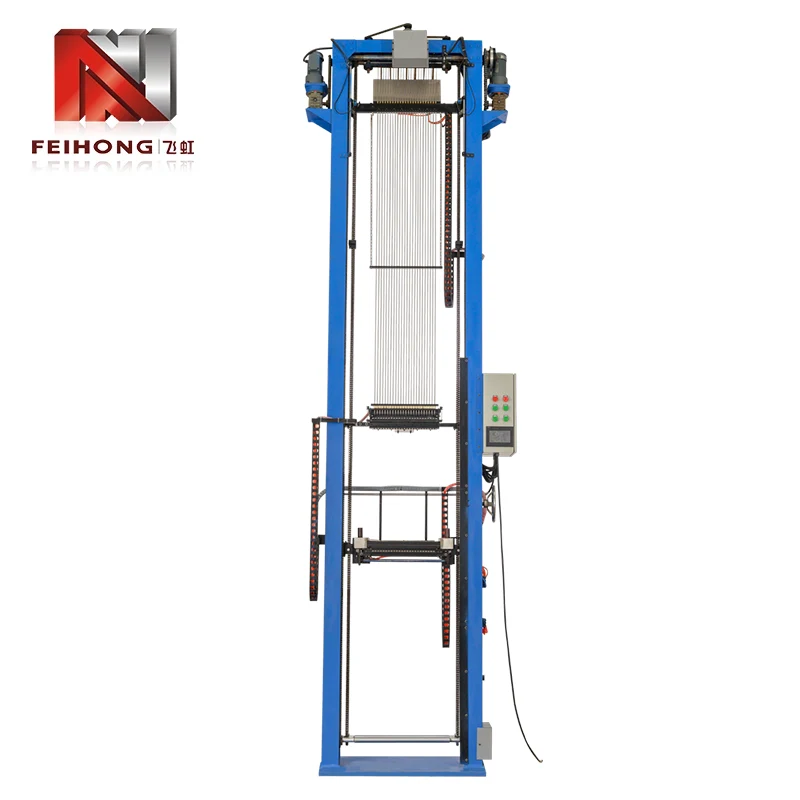

Double Guaranteed Medium Magnesium Oxide Filling Machine

Main structure and properties

FH-112 double guaranteed medium magnesium oxide filling machine is designed and manufactured according to the characteristics of imported similar machines. The machine can be equipped with different multi-station structures (6-48) according to requirements, and it can be made according to different customer requirements, pipe diameters and filling lengths. At present, the longest filling tube can reach 10,000mm and the largest filling diameter is Φ42mm. This model structure is the filling device that managers and long managers want.

Main technical parameters

1.Main work digits:48,36,24,12,etc.

2.Filling length(mm):300-10000

3.Filling Diameter(mm):7.5-42

4.One machine is suitable for one specification

5.Filling structure:double guaranteed center conduit

6.Control mode:Servo motor/universal motor

7.Vibration mode:mechanical,electromagnetic

8.Shift (branch):1000-5000

9.Voltage/air supply:three-phase 380V/three-phase 220V/single-phase 220V/0.6Mpa

10.Power:1100W

11.Machine Volume(mm):(1 meter machine)3500*1600*800

12.Weight:700KG
