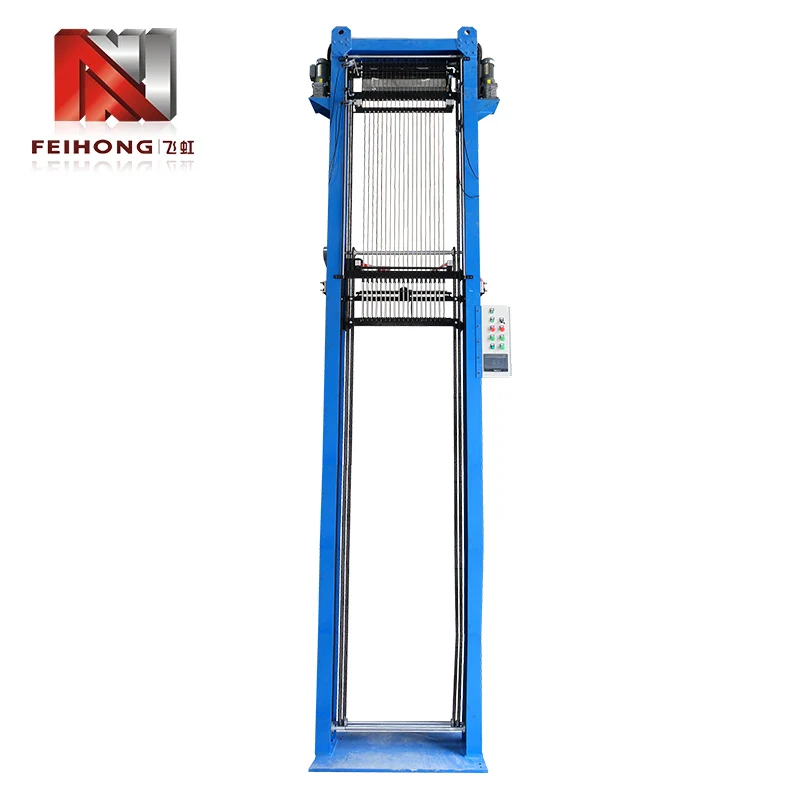

Magnesium Oxide Powder Flat Tube Filling Machine

Main structure and properties

FH-116 magnesium oxide powder flat tube filling machine is a new type of magnesium oxide powder filler with special structure. Specially designed models due to different internal structures of filled products. Machine structure can meet the need to fill the workpiece: one group, two groups or three groups of heating wire components, heating wire components can be arranged in a word type, the customer can be customized according to the different needs of the product process. The special vibrator structure can be used for the vibration method, so that the products produced can better meet the required process requirements.

Main technical parameters

1. The number of main stations: according to the size of the product and customer requirements

2. Filling length (mm): 300-10000

3. Filling pipe diameter (mm): specified by the customer

4. One machine is suitable for one specification.

5. Filling structure: three guarantees or double guarantees (depending on the product structure)

6. Heating wire components: 1-wire, 2-wire, 3-wire

7. Control mode: servo motor/general purpose motor

8. Vibration mode: mechanical, electromagnetic

9. Shift production: according to tube length + tube structure

10. Voltage: three-phase/480/three-phase/380V/three-phase 220V/single-phase 220V

11. Power: 1.5KW

12. Machine volume (mm): according to the product

13. Weight: (1 meter machine) about 700KG
