Single Insurance in Magnesium Oxide Powder Filling Machine

Main structure and properties

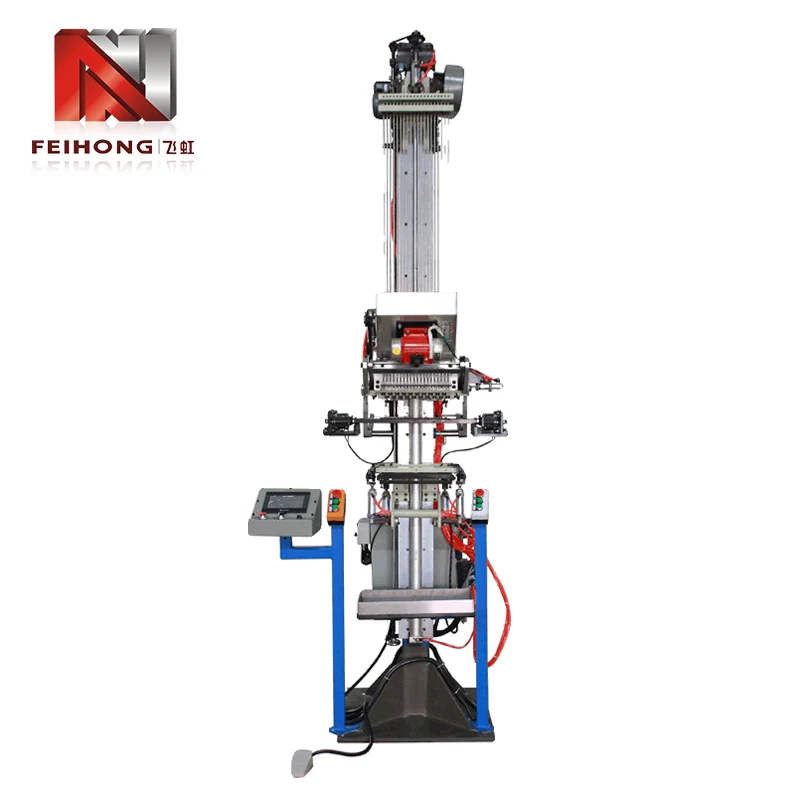

The FH-111 single insurance in magnesium oxide powder filling machine is a single-pillar single-insurance medium conduit structure. Due to its simple structure and relatively fast speed, it can meet the filling process of heating tube with short and large diameter.

This machine is equipped with a tooling fixture for integral tube loading. The tube to be filled is first placed by human hands on the row material rack each time it is prepared to be filled, clamped with a pneumatic fixture, transferred to the machine to be filled, the fixture is released and the filling operation is performed.

Main technical parameters

1. Filling station: 36, 24, 12, etc.

2. Optimum Filling Length(mm): 300-1500

3. Optimum Filling Diameter (mm): 7.5-25

4. One machine is suitable for one specification

5. Filling Structure: In Policy

6. Control mode: PLC+touch screen

7. Vibration mode: motor vibration,electromagnetic

8. Shift: 4000-6000 orso

9. Voltage/air supply three-phase 380V/three-phase 220V/single-phase 220V/0.6Mpa

10. Power: 700W

11. Machine Volume (mm): (1 meter machine) 3500*1300*800

12. Weight: 500KG
