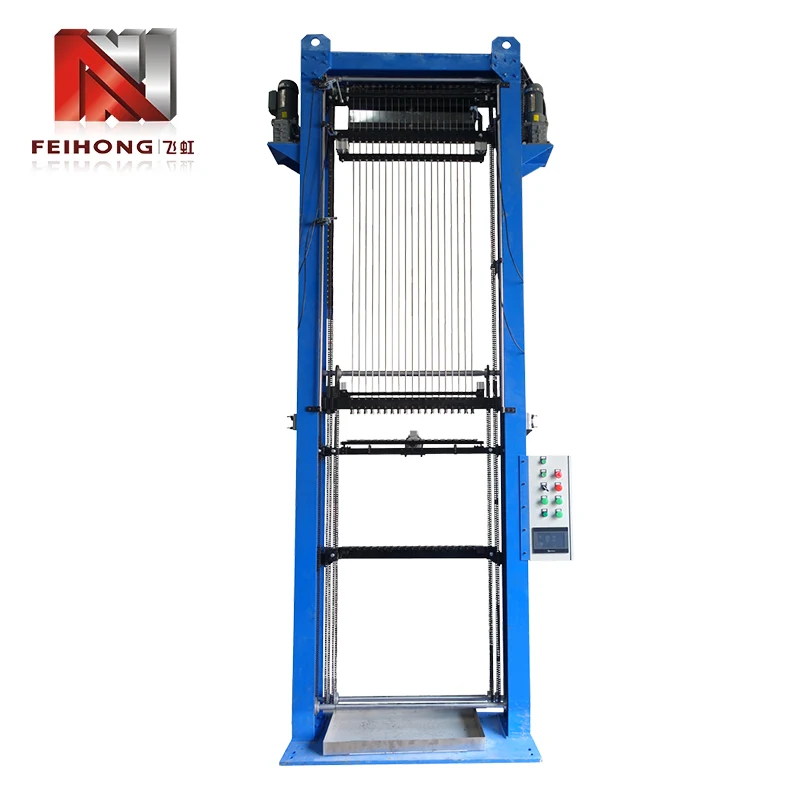

One-type Magnesium Oxide Powder Filling Machine

Main structure and properties

FH-115X one-type magnesium oxide powder filling machine for aluminium tube is a new type of magnesium oxide powder sheet filler. Specially designed models dueto different internal structures of filled products. The machine structure can be used for filling workpieces: one, two or three groups of heating wire assemblies. The special vibrator structure used makes the product more suitable for the process requirements of customers.

Main technical parameters

1. Work Numbers (Branches): X/I-type 10/19

2. Filling length (mm): 300-3000

3. Structure of heating wire assembly: 1 group, 2 groups and 3 groups

4. One machine is suitable for one specification

5. Control mode: Servo motor/universal motor

6. Vibration mode: mechanical, electromagnetic

7. Shift production: 2000-3000 (1 meter long)

8. Voltage/air supply: three-phase 380V/three-phase 220V/single-phase 220V/0.6Mpa

9. Power: 1100W

10. Machine Volume (mm): (1 meter machine)3500*1600*800

11. Weight: 600KG
