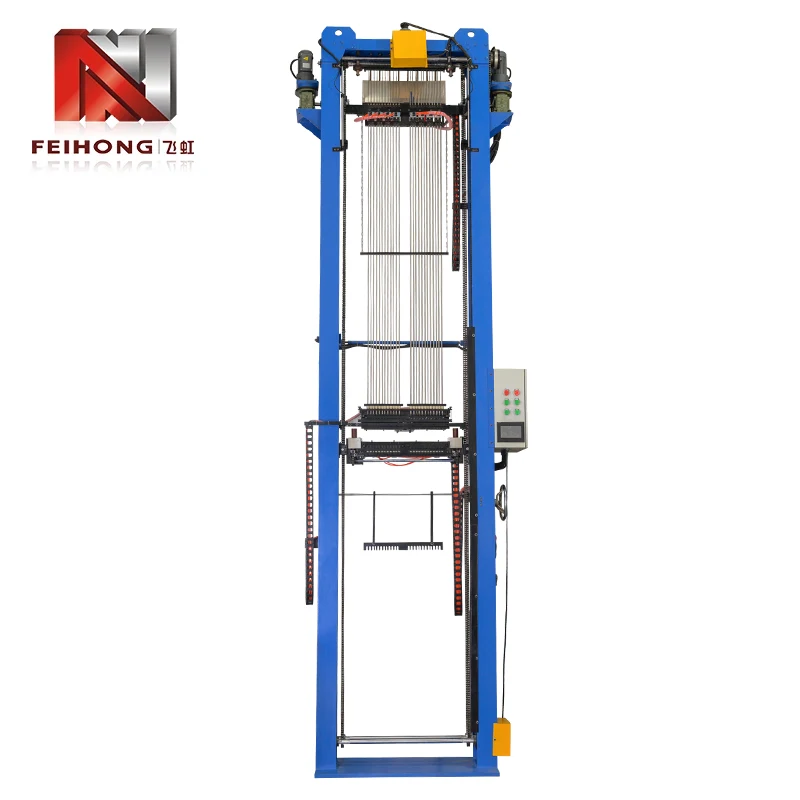

Hybrid Structure Magnesium Oxide Powder Filling Machine

Main structure and properties

FH-114 hybrid structure magnesium oxide powder filling machine is a new type of magnesium oxide powder filler with FH-double guaranteed middle duct+triple guaranteed middle duct structure. Due to the diferent diameters of filling pipes, this filler has been specially designed to meet the requirements of filling both large and small pipes.

Main technical parameters

1. Main work digits: 48, 36, 24, 12, etc.

2. Filling length (mm): 300-10000

3. Filling pipe diameter (mm): 7.5-42

4. One machine can be used in many sizes

5. Filling structure: three guarantees plus two guarantees

6. Control mode: Servo or General Motors

7. Vibration mode: mechanical, electromagnetic

8. Shift: 1000-5000(1 meter long)

9. Voltage/air supply: three-phase 380V/three-phase 220V/single-phase 220V/0.6Mpa

10. Power: 1100W

11. Machine Volume (mm): (1 meter machine) 3500*1600*800

12. Weight: 700KG
