China Short Circuit Heating Equipment for Tube Annealing Treatment Manufacturer, Supplier, Factory
Feihong trusted China supplier offers Short Circuit Heating Equipment for Tube Annealing Treatment, 35-80KW short-circuit thermal processing unit designed for heating tube stress relief, capable of local and full-length annealing within 100-4000mm range to soften rigid tubes and prevent cracking during subsequent processing.

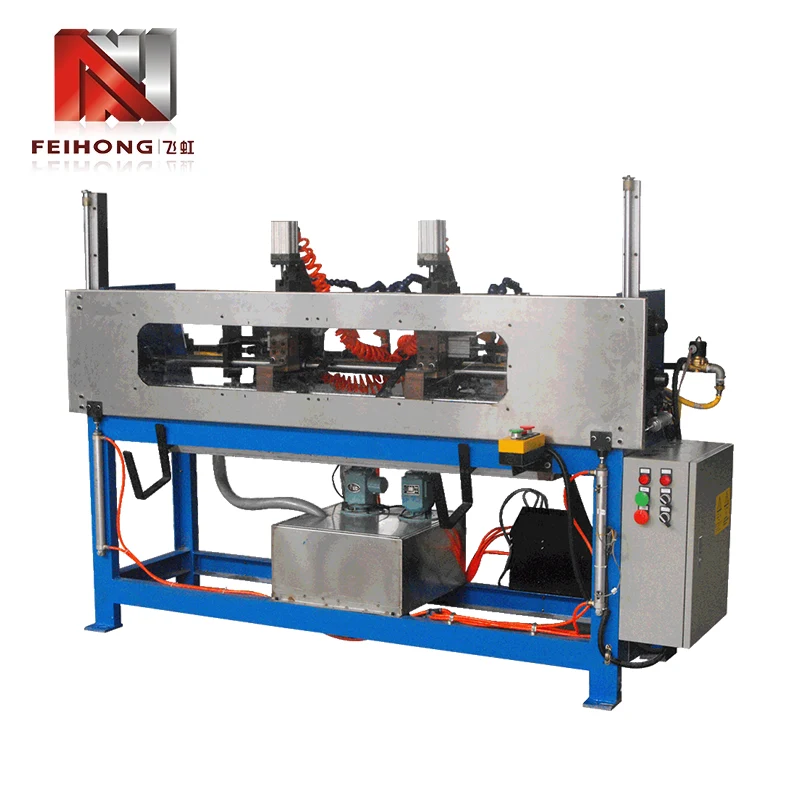

Zhaoqing Feihong Machinery & Electrical Co., Ltd has focused on heating tube manufacturing equipment development since 1992. As an experienced industrial machinery manufacturer, we independently design and produce Short Circuit Heating Equipment for Tube Annealing Treatment. This thermal processing machine adopts advanced short-circuit heating principle to carry out annealing treatment on semi-finished heating tubes. When matched with pipe shrinking machines and bending equipment, it optimizes the whole heating tube production workflow for heating element manufacturers all over the world.
Working Principle
This annealing processing unit relies on mature short-circuit heating technology to deliver controllable thermal energy to metal heating tubes. The targeted heating process changes the metal internal structure, lowers surface hardness and eliminates residual stress generated in cold forming procedures.
1. Conduct concentrated heating on designated tube sections by short-circuit heating method
2. Realize material softening after constant temperature heat preservation
3. Avoid excessive overall heating and effectively control processing cost
The flexible heating mode makes Short Circuit Heating Equipment for Tube Annealing Treatment adaptable to diversified production requirements of heating tube factories.
Core Machine Merits
Many tube manufacturers are troubled by brittle tubes, tiny deformation and tube burst after shrinking process. Feihong short-circuit heating annealing equipment provides an effective solution with multiple competitive strengths:
● Dual heating option: Users can select full-length tube annealing or partial local annealing according to product drawing demands
● Optional automatic feeding system: The base unit can be upgraded with auto feeding mechanism to cut manual operation workload
● Wide processing length range: Support heating tubes ranging from 100mm up to 4000mm without complicated mold replacement
● Multi-workpiece simultaneous processing: Each operation cycle can process 1–4 heating tubes to boost hourly production capacityOfficial Technical Specification
All parameters of FH-147 model Short Circuit Heating Equipment for Tube Annealing Treatment are verified through long-term production testing inside Feihong manufacturing workshops, data is stable for continuous industrial operation.
| Specification Item | Standard Parameter |
|---|
| Model | FH-147 Short Circuit Annealing Equipment |
| Power Range | 35KW ~ 80KW |
| Annealing Length Scope | 100mm – 4000mm |
| Processing Quantity per Run | 1 ~ 4 pieces |
| Power Supply | Three-phase 380V |
| Required Air Pressure | 0.6Mpa |
| Dimension (for 1m heating tube) | 1100*650*800 mm |
| Machine Weight | 500KG |
Equipment Comparison
The table below compares Feihong Short Circuit Heating Equipment for Tube Annealing Treatment against traditional resistance heating furnaces widely seen on the market for your reference:
| Comparison Content | Feihong Short Circuit Heating Annealing Equipment | Traditional Tube Heating Furnace |
|---|
| Heating Mode | Short-circuit direct heating, local & full-length optional | Whole furnace heating, hard to realize partial annealing |
| Energy Consumption | Low power waste for targeted heating area | High power consumption, full chamber heating |
| Automation Upgrade | Support automatic feeding structure customization | Limited automatic transformation space |
| Production Floor Space | Compact machine body, save factory space | Large overall occupation area |
| Post-processing Match | Perfectly connect heating tube bending procedures | Poor compatibility with precision tube bending |
Main Application Industries
Manufacturers in many sectors choose Short Circuit Heating Equipment for Tube Annealing Treatment to carry out tube annealing treatment before bending and assembly:
1. Household appliance heating element manufacturing: water heater tubes, oven heating pipes, electric radiator heating tubes
2. Industrial equipment heating tube production: heating components for mold, mechanical equipment and pipeline insulation
3. Custom special alloy heating tube processing: stress elimination for brittle alloy tubular raw materials
4. Heating element supporting processing for new energy equipment
This heating equipment can be combined with Feihong magnesium oxide filling machine, pipe reducer and tube bending machine to build a complete automatic heating tube production assembly line.
Why Choose Feihong
When purchasing industrial short-circuit heating annealing machines, factory strength directly decides equipment stability and after-sales experience. Feihong owns complete production system for heating tube machinery:
● 6 standardized production workshops covering mold processing, assembly and inspection
● Independent research team to provide tailored solutions for special tube specifications
● All core components are produced and assembled in our own factory, avoid unstable outsourced spare parts
● Long-term technical support and global after-sales coordination for overseas buyers
FAQ – Purchasing Questions
Q1: Can short circuit heating technology achieve consistent annealing softening effect?
A1: Yes. Short Circuit Heating Equipment for Tube Annealing Treatment features stable power output within 35-80KW range. Operators can adjust heating parameters according to tube material and wall thickness, so uniform softening effect can be obtained, effectively reducing tube surface hardness steadily in mass production.
Q2: Is there any special requirement for workshop environment to install this annealing equipment?
A2: Basic industrial environment with three-phase 380V power supply and stable 0.6Mpa air source is required. The machine adopts compact layout. No special heat insulation room is necessary compared with large heating furnaces. Regular ventilation in production workshop meets daily running demands.
Q3: Can I buy the machine first and add automatic feeding structure later?
A3: Support delayed upgrading. We reserve installation interface for automatic feeding assembly on the main machine frame. Customers can purchase the standard manual feeding version first. When production capacity expands in the future, you can order the automatic feeding module separately for retrofitting without buying a new whole machine.
Q4: How long will it take to deliver after order confirmation?
A4: The delivery cycle depends on machine configuration. Standard FH-147 main unit has relatively fast delivery. If you need customized automatic feeding structure or special fixture adjustments, our sales team will confirm exact lead time after receiving your technical requirements.
Comprehensive Value Analysis
Investing in Feihong Short Circuit Heating Equipment for Tube Annealing Treatment solves typical production obstacles including tube brittleness, cracking and excessive surface hardness after shrinking process. Thanks to flexible short-circuit targeted heating design, it balances processing quality and operating cost. Whether small-batch customized heating tube production or large-scale continuous manufacturing, this annealing heating equipment brings stable yield improvement for heating tube factories worldwide.
