Pneumatic Clamping Automatic Welding Equipment

Feihong offers the Pneumatic Clamping Automatic Welding Equipment, a specialized resistance welding system designed for welding the bottom end of single‑hair heat pipes. As a trusted China supplier with over 30 years of manufacturing experience, Feihong integrates pneumatic clamping mechanisms with capacitor discharge spot welding technology to ensure precise electrode pressure and consistent weld quality. The machine operates at 5KVA power, 380V voltage, and 0.6Mpa air source, with manual loading and unloading. The pneumatic clamping system provides stable, repeatable force application, reducing operator fatigue and improving weld uniformity across production runs.

Pneumatic Clamping System

The defining feature of this equipment is its pneumatic clamping mechanism, which replaces manual clamping with automated, force‑controlled electrode engagement. This system ensures that each welding cycle applies consistent pressure to the workpiece, a critical factor for achieving uniform spot welds on heat pipe bottoms. The pneumatic cylinders are actuated by the 0.6Mpa shop air supply, providing rapid response and adjustable clamping force.

Key advantages of the pneumatic clamping system include:

1. Consistent Electrode Force – Pneumatic pressure maintains uniform clamping force across all cycles, eliminating variability caused by operator technique.

2. Faster Cycle Times – Automated clamping reduces the time between workpiece loading and welding, increasing overall throughput.

3. Reduced Operator Fatigue – Manual clamping is eliminated, allowing operators to focus on loading and quality inspection rather than physical exertion.

4. Adjustable Pressure Settings – The air regulator allows fine‑tuning of clamping force to accommodate different heat pipe materials and wall thicknesses.

This pneumatic clamping approach makes the Pneumatic Clamping Automatic Welding Equipment particularly suitable for production environments where consistency and speed are paramount, delivering repeatable weld quality shift after shift.

Integrated Vibratory Feeding

The equipment incorporates an electromagnetic vibrating disc device that automatically feeds and orients components to the welding station. This vibratory feeder, working in concert with the pneumatic manipulator, streamlines the material handling process and minimizes manual intervention. The vacuum attachment system ensures that each welding piece is securely seated in the positioning groove before the clamping and welding sequence begins.

Feeder system capabilities include:

● Electromagnetic vibration for consistent part orientation and flow.

● Adjustable feed rate to match production line speed requirements.

● Vacuum pickup that holds the component firmly during transfer to the welding station.

● Positioning grooves that are interchangeable to accommodate various heat pipe diameters.

This integrated feeding and clamping solution reduces handling errors and enables semi‑automated operation, making the welding process more efficient for heat pipe assembly lines.

Technical Specifications

The equipment is built with robust electrical and pneumatic systems to meet demanding industrial production schedules. All parameters are validated through factory testing to ensure reliable performance.

● Machine Capacity: 5KVA

● Operating Voltage: 380V (three‑phase)

● Air Source Pressure: 0.6Mpa

● Welding Method: Capacitor energy storage spot welding

● Clamping Type: Pneumatic cylinder with adjustable pressure

● Feed Mechanism: Electromagnetic vibrating disc

● Workpiece Loading: Manual operation

● Control System: Pneumatic cylinders with swing and clamp functions

These specifications ensure stable performance across diverse workshop conditions, with low maintenance requirements, ensuring the Pneumatic Clamping Automatic Welding Equipment performs consistently over extended production cycles.

Performance Comparison

To help you evaluate the equipment against alternative welding solutions, the following comparison highlights key differentiators.

As the comparison shows, the equipment offers an optimal balance between automation, cost, and operational simplicity. It delivers the consistency of automated clamping without the high capital investment and complex maintenance associated with fully servo‑electric systems, making it a practical choice for manufacturers upgrading from manual welding operations.

Application Scope

This welding equipment is primarily designed for heat pipe manufacturing, specifically for sealing the bottom end of single‑hair heat pipes used in electrical heating elements. Feihong machinery serves both industrial and civilian sectors, with applications spanning multiple industries.

Primary applications include:

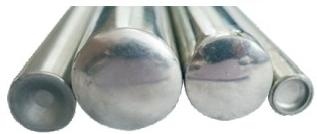

1. Heat pipe end closure – Sealing the bottom of single‑hair heat pipes for household and industrial heating elements.

2. Electrical heating tube production – Bottom welding in the manufacturing of tubular heating elements.

3. Cable and wire harness assemblies – Resistance welding of tube ends in cable manufacturing.

4. Daily electrical appliances – Component welding for consumer heating products.

5. Aerospace and military applications – Specialized electrical heating tube equipment for demanding environments.

The machine's versatility also allows adaptation for other small‑part resistance welding tasks with appropriate fixture changes, and this equipment offers flexible solutions for manufacturers across multiple sectors.

Manufacturing Capabilities

As a leading China manufacturer, Feihong operates six dedicated workshops that support the complete production cycle of the equipment . These include a powder filling workshop, pipe shrinking workshop, machining center, mold production workshop, raw material cutting workshop, and machine assembly workshop. This vertical integration ensures full quality control from raw material inspection to final assembly.

Feihong's manufacturing infrastructure includes:

1. Powder filling and pipe shrinking – Precision preparation of heating tube components.

2. Machining center and mold production – Custom tooling and precision machining for critical components.

3. Raw material cutting and machine assembly – Streamlined production flow with dedicated assembly lines.

The company's factory houses eight sets of advanced machine manufacturing equipment, enabling efficient production and quick turnaround. Feihong's engineering team continuously refines equipment designs based on customer feedback, ensuring the Pneumatic Clamping Automatic Welding Equipment meets evolving industry standards. Since its founding in 1992, the company has successfully developed a variety of electrical heating tube equipment with special structures according to customer demands.

Quality Assurance

Feihong maintains rigorous quality standards across all manufacturing processes. Each unit of this welding equipment undergoes systematic testing to verify welding accuracy, electrical performance, pneumatic system functionality, and clamping force consistency.

Quality verification procedures include:

1. Welding precision testing – Using standardized heat pipe samples to verify weld penetration and consistency.

2. Electrical system validation – Full load testing at 380V operating conditions.

3. Pneumatic system testing – Clamping force calibration and cycle testing at 0.6Mpa air pressure.

4. Vibratory feeder calibration – Feed rate and orientation accuracy verification.

5. Endurance testing – Extended cycle testing to validate long‑term reliability.

Each machine is accompanied by a detailed inspection report, providing customers with documented evidence of performance verification.

After-Sales Support

Feihong provides comprehensive after‑sales support for all its welding equipment, including the equipment, ensuring smooth integration into your production line and minimal downtime.

Support services include:

● Installation guidance – On‑site or remote assistance for machine setup and commissioning.

● Operator training – Comprehensive training on machine operation, pneumatic system adjustment, and basic maintenance.

● Remote diagnostic support – Phone and video support for rapid troubleshooting.

With over three decades of experience, Feihong ensures that every piece of Pneumatic Clamping Automatic Welding Equipment is backed by reliable service and a commitment to customer satisfaction, minimizing production interruptions and maximizing uptime.

Frequently Asked Questions

A: Yes, the standard model is manually loaded but can be integrated with conveyor systems or part feeders. Feihong offers optional automation interfaces for integration with PLC‑controlled production lines. Contact our sales team to discuss your specific integration requirements.
