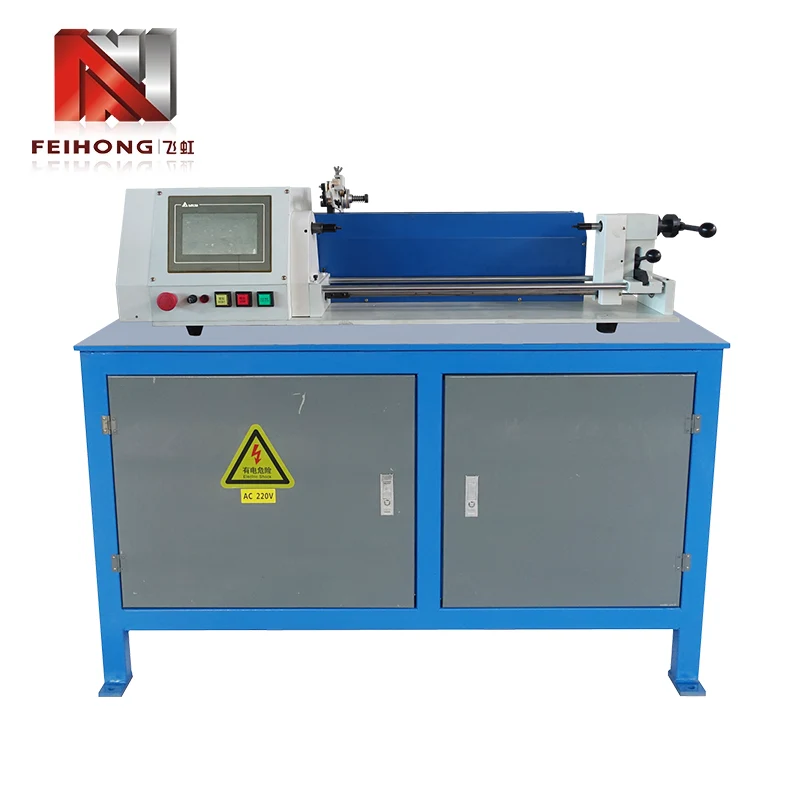

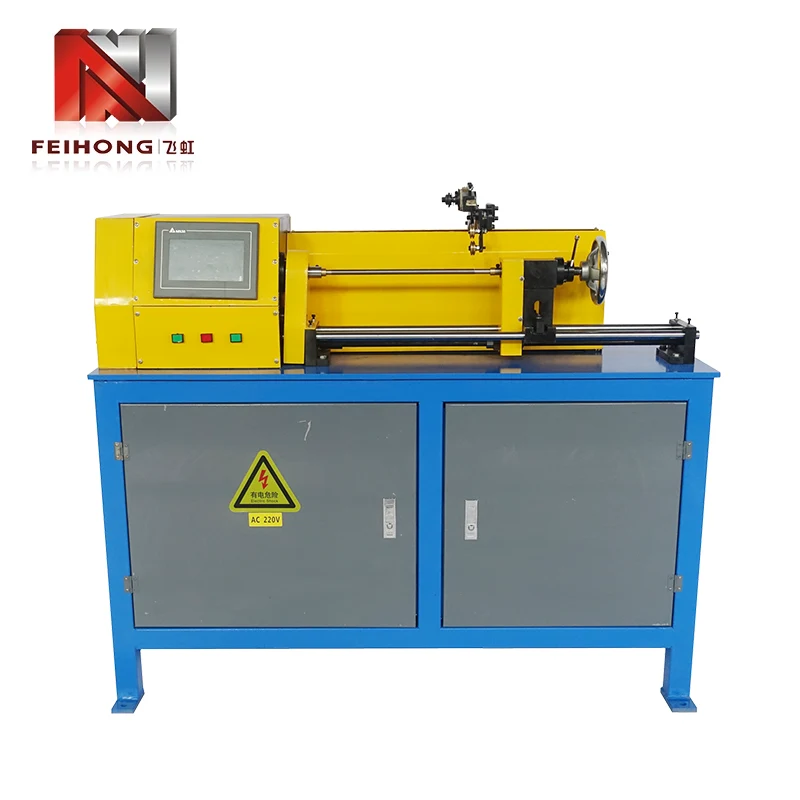

FH-323 magnesium rod and mica sheet winding machine is designed and manufactured for single end lead wire resistance wirehigh density electric heating element, mica sheet type, arbon fiber type, magnesium rod, ceramic rod and other electric heating elements, meanwhile, it can wind electric heating elements with different pitch arrangement. The machine is controlled by servo motor +PLC, which is a multi-purpose machine.
1. Coil diameter(mm): 0.1-1.0
2. Length of winding coil(mm): 10-1000
3. Control mode: servo motor+PLG+touch screen

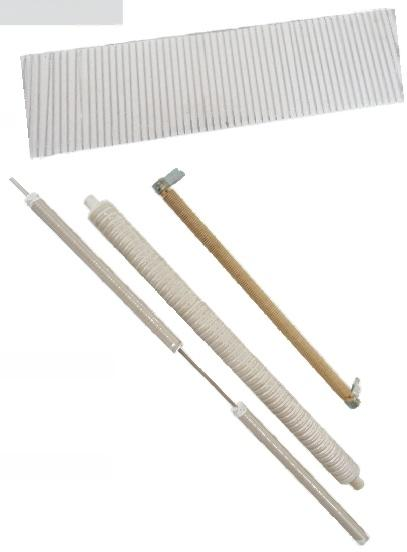

4. One machine can wound electric heating elements such as mica sheet, carbon fiber, magnesium bar, ceramic bar, etc.
5. Speed Adjustable
6. Shift: 800-2000 units/set
7. Voltage: Three-phase 380V/Three-phase 220/V/Single-phase 220V
8. Power: 500W
9. Machine Volume(mm): L*W*H1200*700*1300
10. Machine weight: 00KG
