PLC Double-end Winder with Tail

Main structure and properties

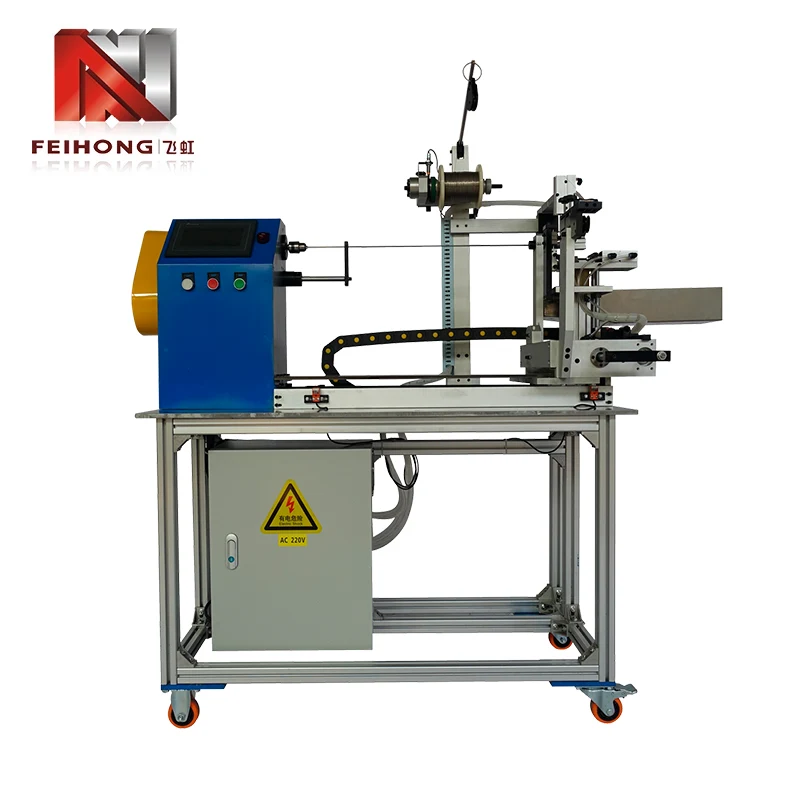

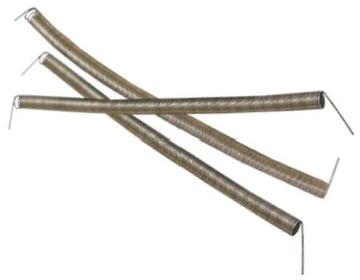

FH-325 PLC double-end winder with tail is mainly designed to meet the needs of double-end heater wire products; This automatic double-end tailed special machine is controlled by PLC, touchscreen and servo motor, with stable performance and easy operation. Fully automatic line-up-automatic start-up-automatic wire-arrangement-automatic stop-automatic cut-off-automatic wire-take-up automatic new special machine with two ends and tails.

Main technical parameters

1. Winding coil length (mm): 30-1200

2. Coil diameter (mm): 0.1-0.8

3. Coil spindle (mm): 0.5-10

4. Maximum outer diameter of winding (mm): 12

5. Power supply control (servo motor): three-phase 380V/three-phase 220V/single-phase 220V

6. Power: 1.3KW

7. Speed Adjustable

8. Shift (branch): 2000-5000

9. Volume (mm): 1300*800*1300

10. Weight: 200KG
