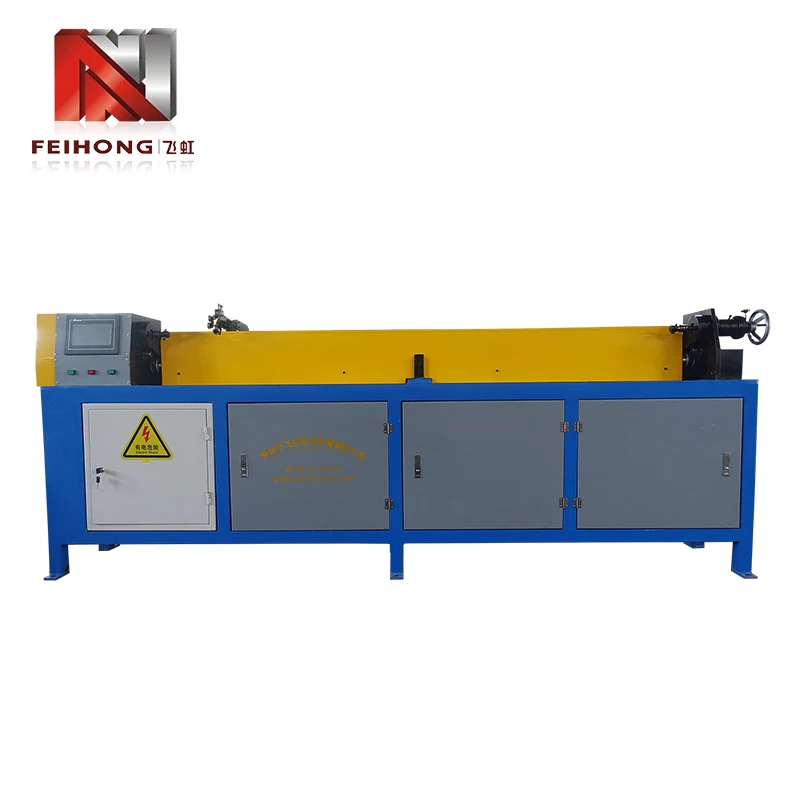

Hot Runner Heating Tube Winding Machine

Main structure and properties

FH-324 Hot runner heating tube winding machine is specially designed for winding heating wire components for hot runner heating tube;the spiral coil is small,and the inner diameter after winding is usually only 0.5mm or less,whichis difficult to use on other winding equipment.operate.This machine can be used for winding helical coils with different pitches,and the machine can be equipped with single- winding and double-winding functions.It is a hot runner heating tube winding machine that can wind a smaller wire diameter at present.

Main technical parameters

1.Coil diameter(mm):0.08-1.0

2.Length ofwinding(mm):100-2000

3.Control mode:servo motor+PLG+touch screen

4.Speed Adjustable

5.Shift(set):600-1000

6.One machine can wound electric heating elements such as mica sheet, carbon fiber,magnesium bar,ceramic bar,etc.

7.Voltage:Three-phase 380V/Three-phase 220/V/Single-phase 220V

8.Power.500W

9.Machine volume(mm):L*W*H2500*700*1300

10.Machine weight:300KG
