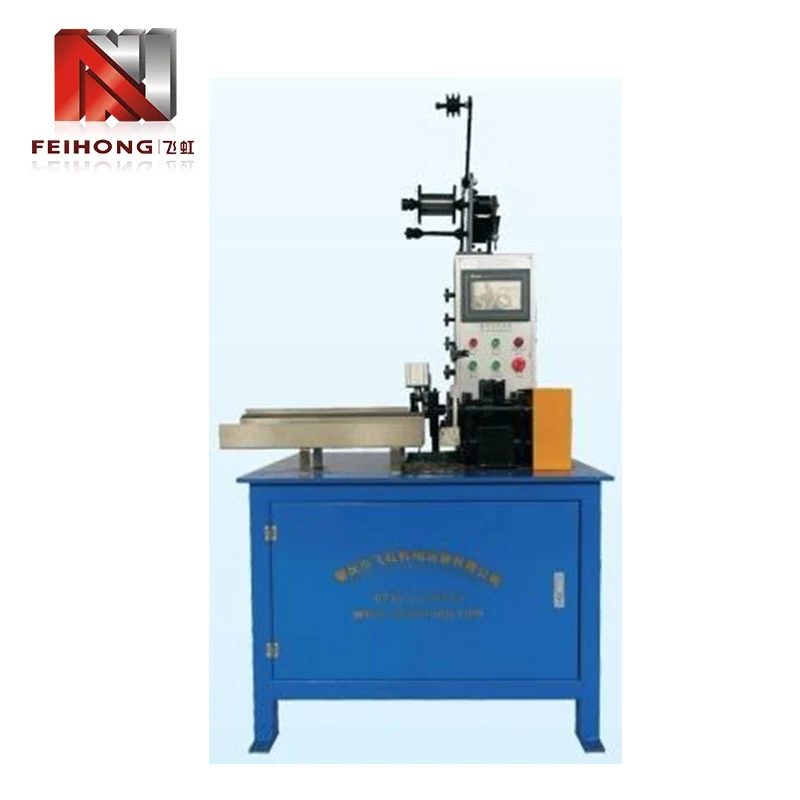

Fully Automatic Resistance Wire Winder

Main structure and properties

FH-328 type winding machine, the main models are many, there are winding single line, double line, three line machine, single pressure wheel, double pressure wheel structure; there are ordinary counter control, there are PLC control, these models can be randomly matched.

Main technical parameters

1. Type: Single-wire, double-wire, three-wire, single-press, double-press, PLC arbitrary combination

2. Coil diameter (mm): 0.13-2.0

3. Length of winding (mm): infinite length

4. Coil spindle (mm): 1-20

5. Maximum Coil Outside Diameter (mm):25

6. Voltage: single-phase 220V Power: 400W

7. Speed:Dual Speed Adjustable

8. Shift (branch): 2000-5000

9. Volume (mm): 1800*900*700

10. Weight: 200KG
