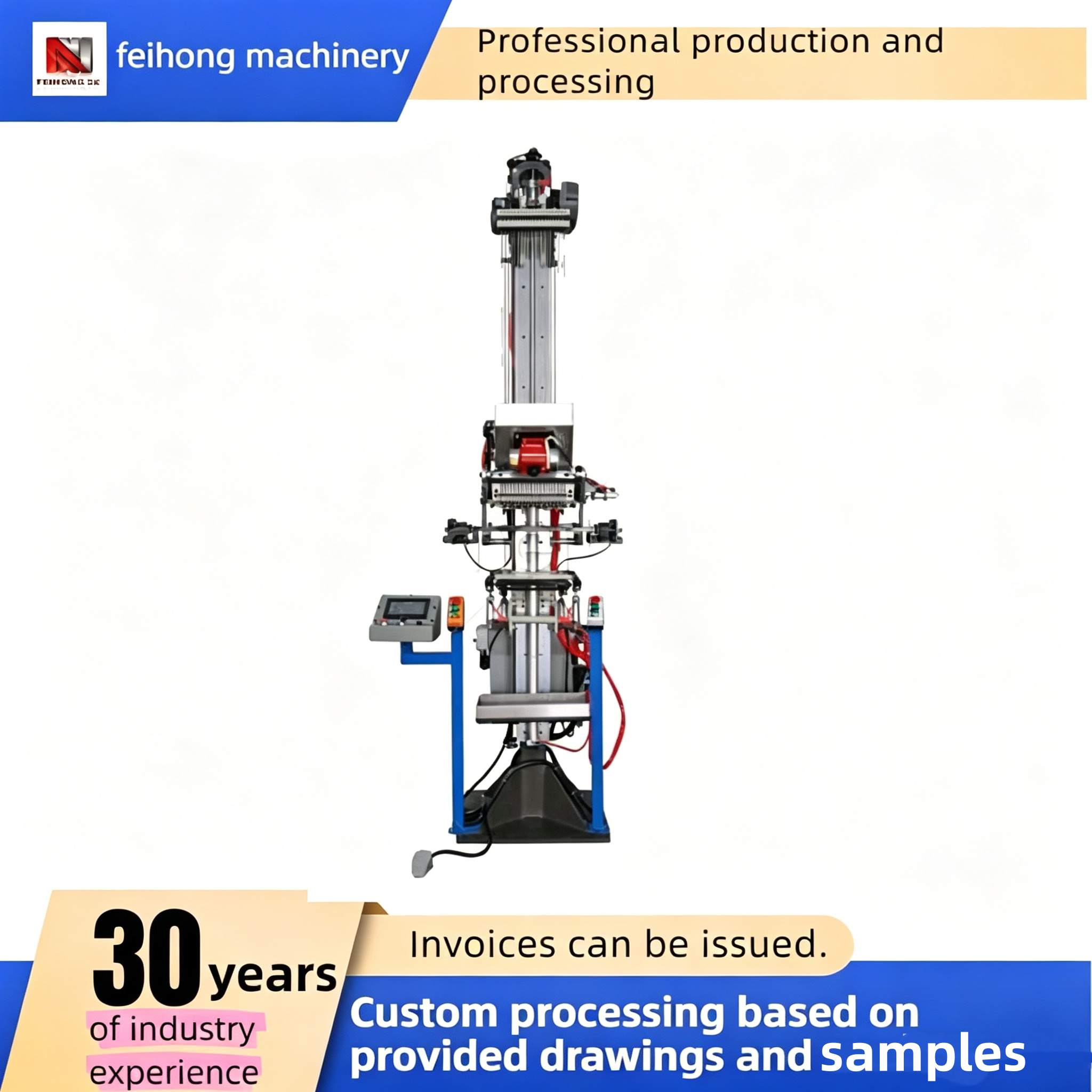

FH-111 Single Column Magnesia Powder Filling Machine for Short Large-Diameter Heating Tubes

Model:FH-111

Single-column single guide tube structure, simple design & high working speed Specialized for short, large-diameter heating tube magnesia filling Integrated pneumatic clamping fixture for convenient batch tube loading Stable automatic tube transfer, easy manual feeding operation

Filling number:
36,24, 12, etc.
Optimum filling length (mm):
300-1500
Optimum filling pipe diameter (mm):
7.5-25
One machine for one specification:
1
Filling structure:
single guarantee
Control mode:

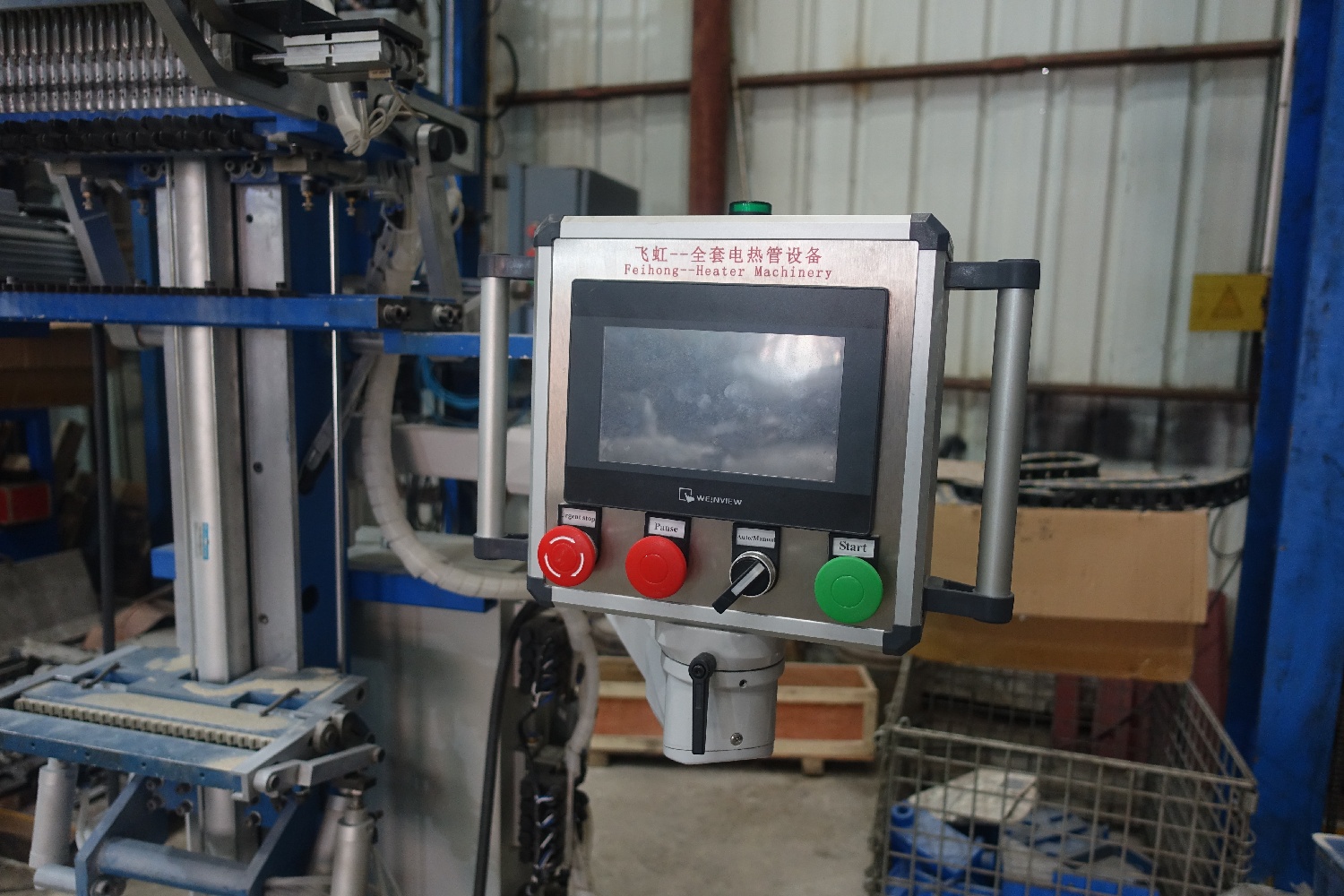

PLC+touch screen
Vibration mode:
motor vibration, electromagnetic
Class production:
about 4000-6000 pieces
Voltage/air source:
three-phase 380V/ three-phase 220V/Single-phase 220V/0.6Mpa
Power:
700W
Machine volume (mm):
(1 meter machine) 3500*1300*800
Weight:
500KG

Send Inquiry

Alibaba

Product Description

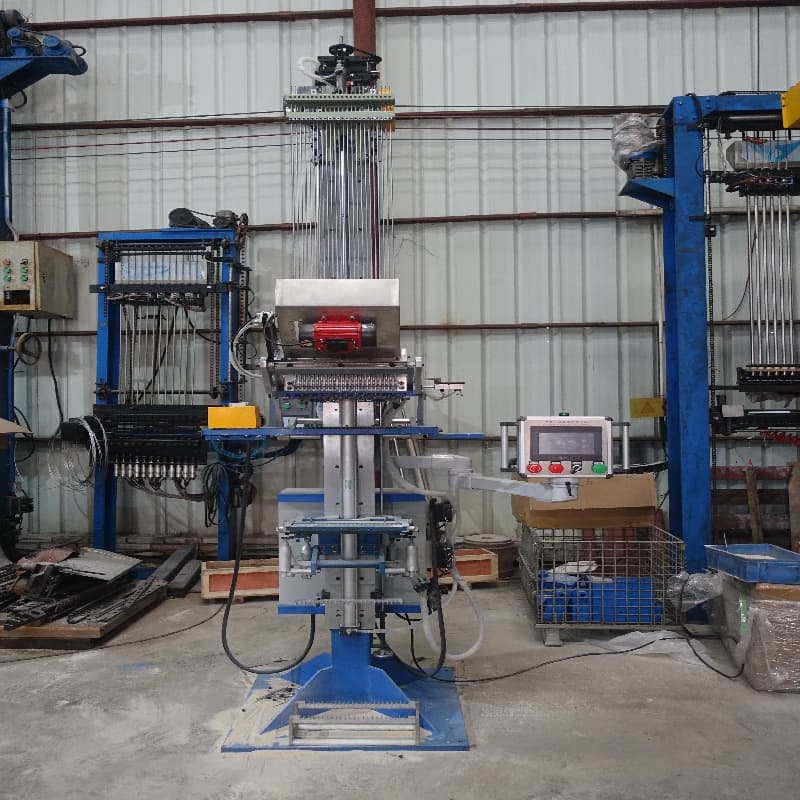

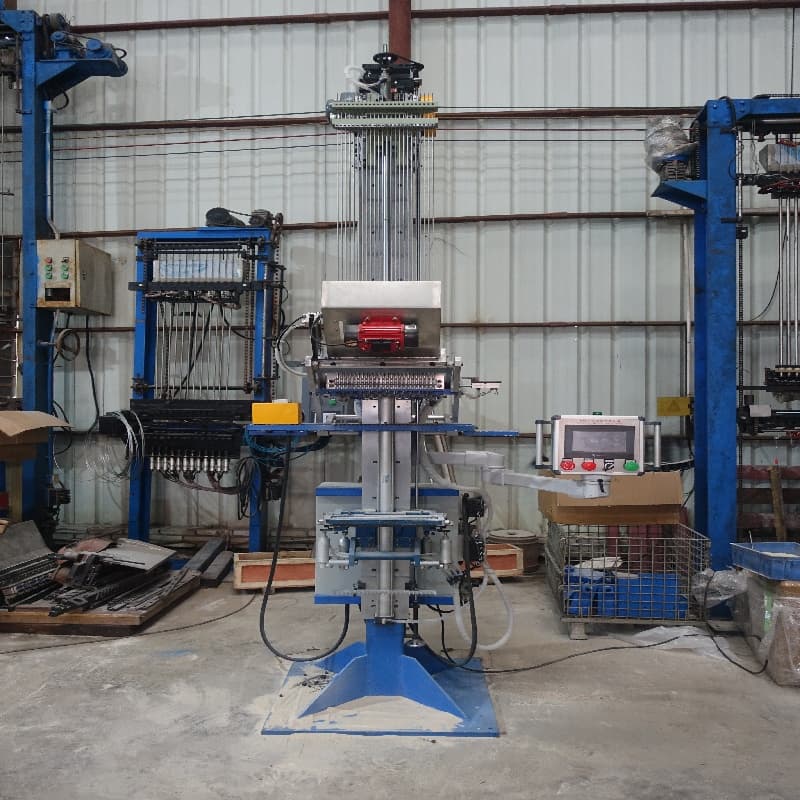

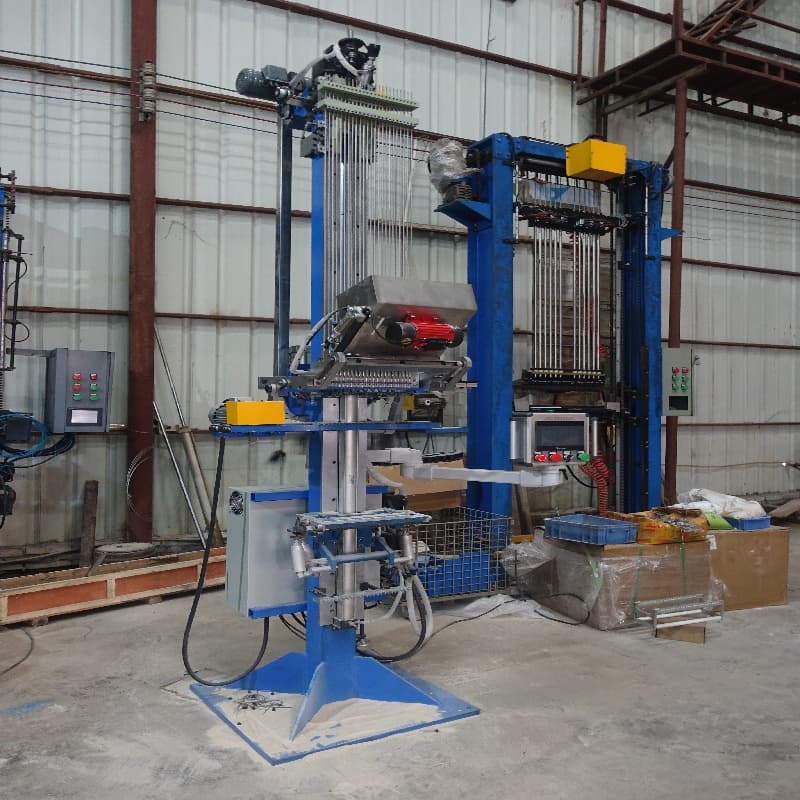

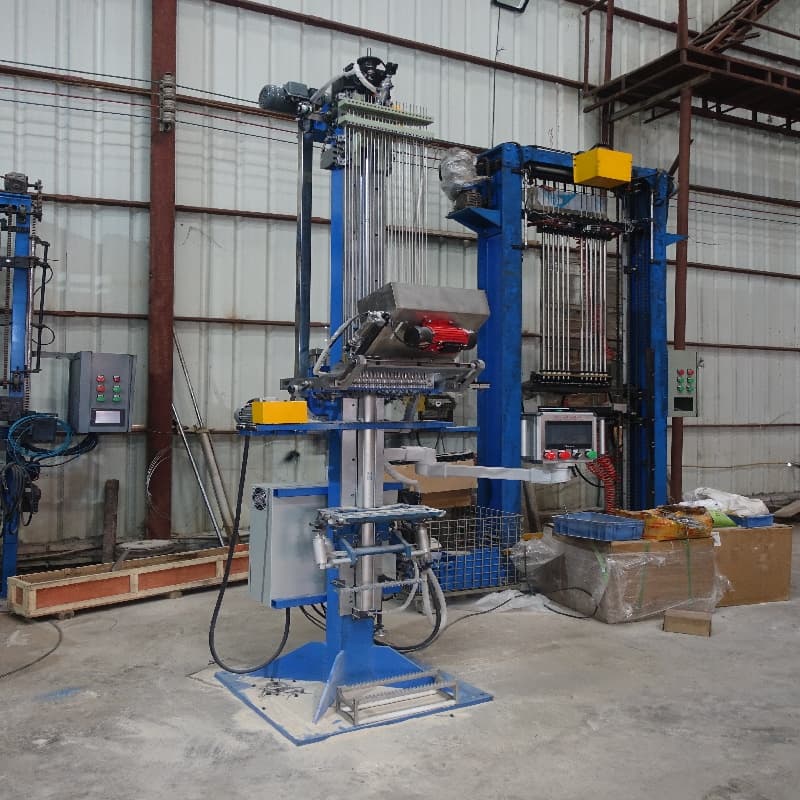

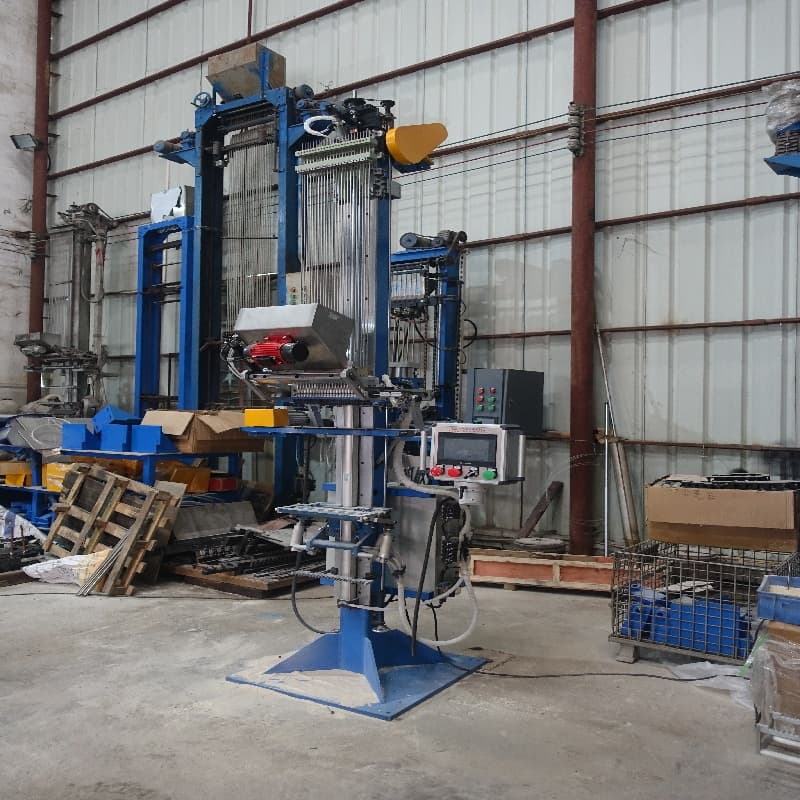

FH-111 single-column magnesia powder filling machine features a single-column single middle guide tube structure. With a simple mechanical layout, it delivers fast filling speed, ideal for filling short and large-diameter heating tubes.

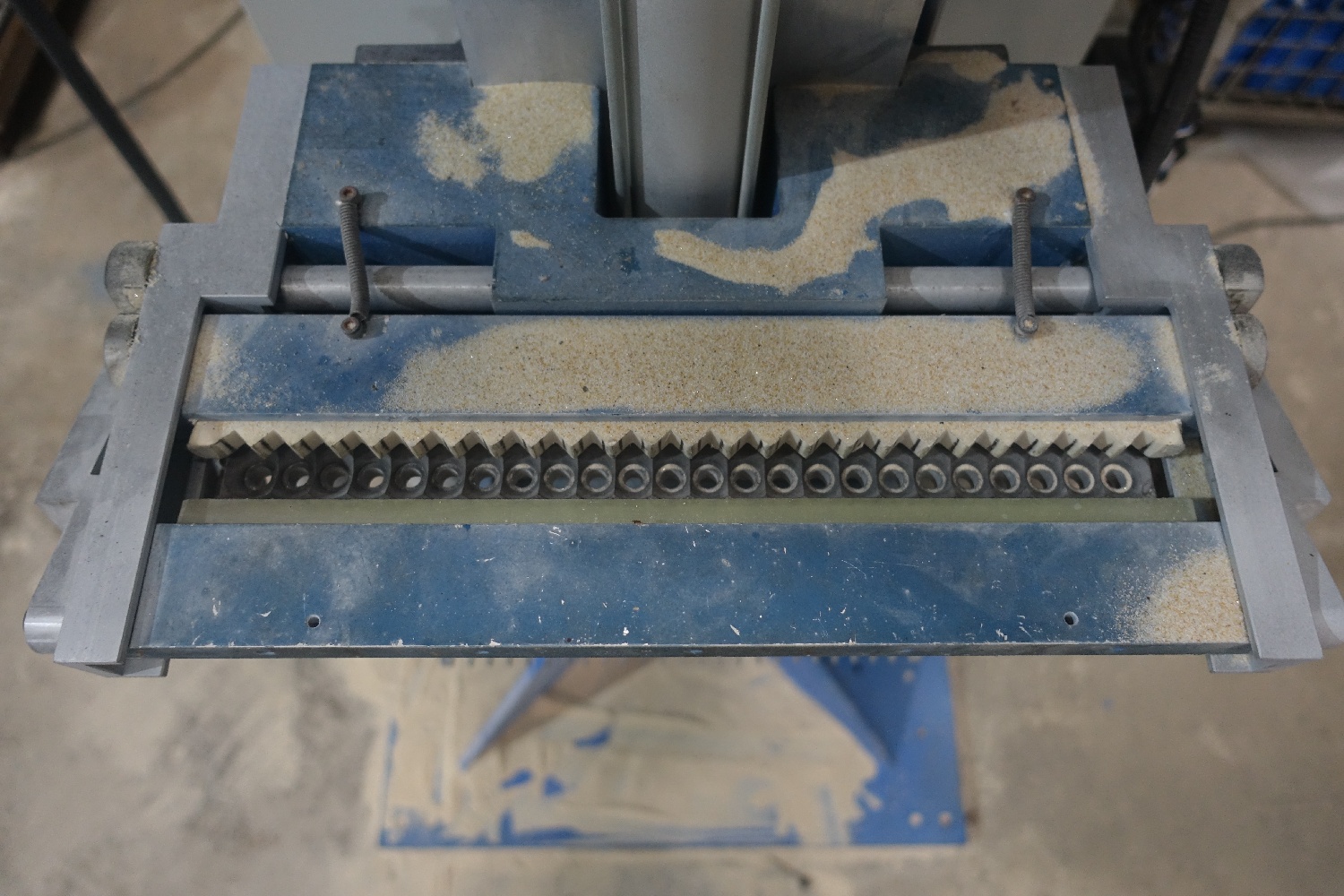

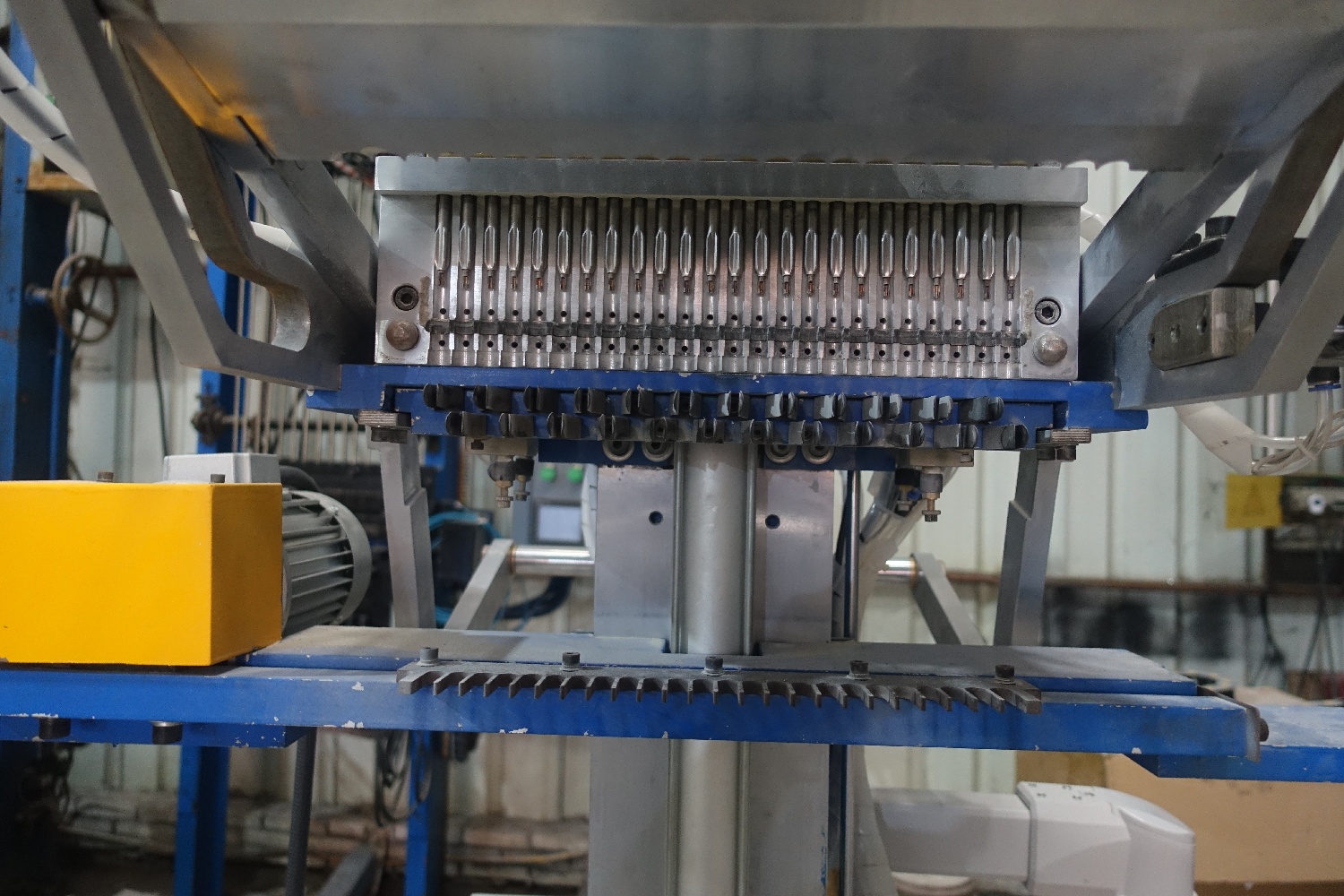

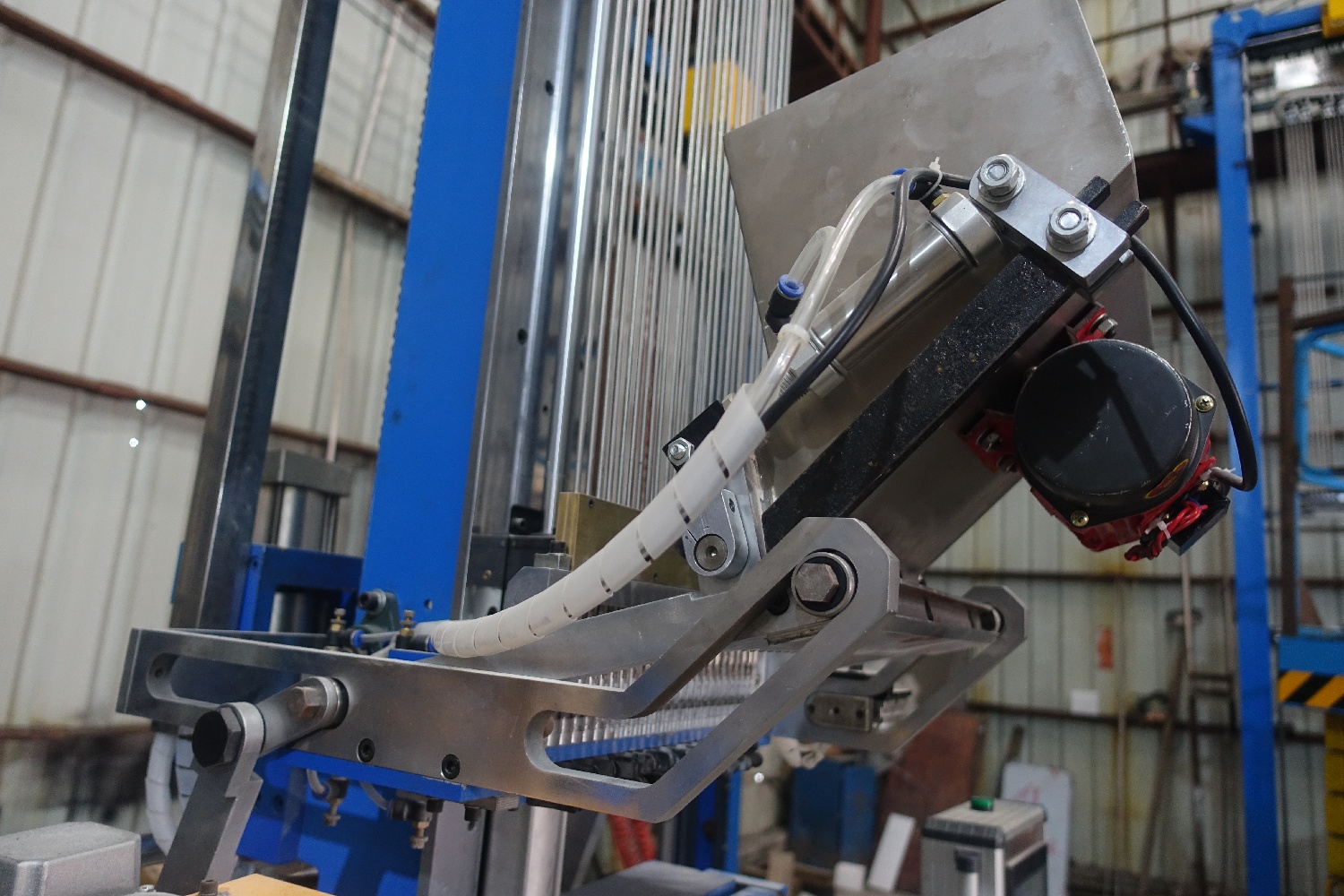

It comes with an integrated tube loading fixture. Workers place tubes on the material rack, which are then clamped by pneumatic fixtures, transported to the filling position and unclamped to start powder filling automatically.
