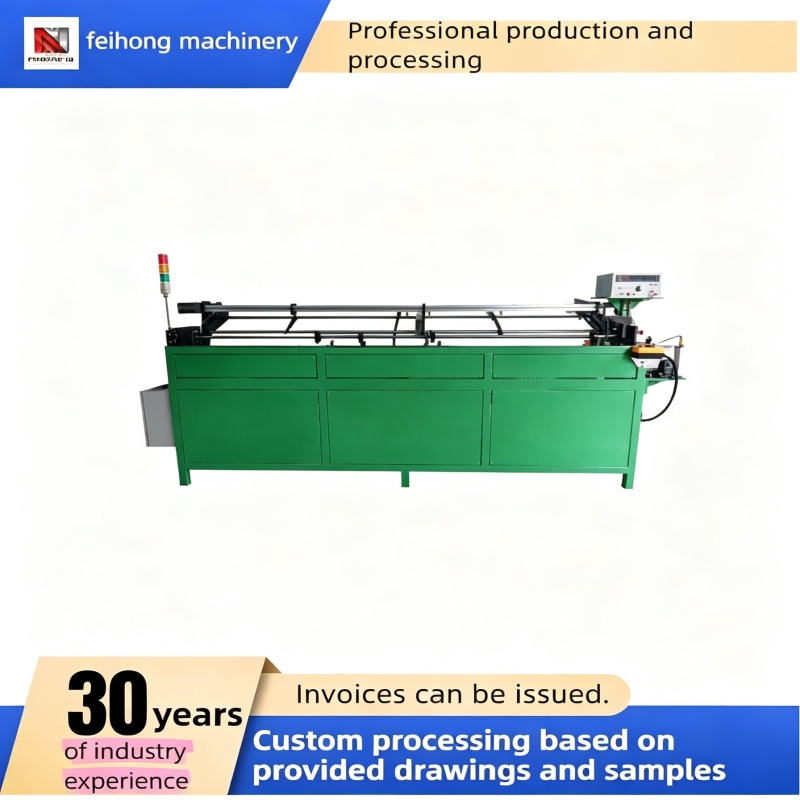

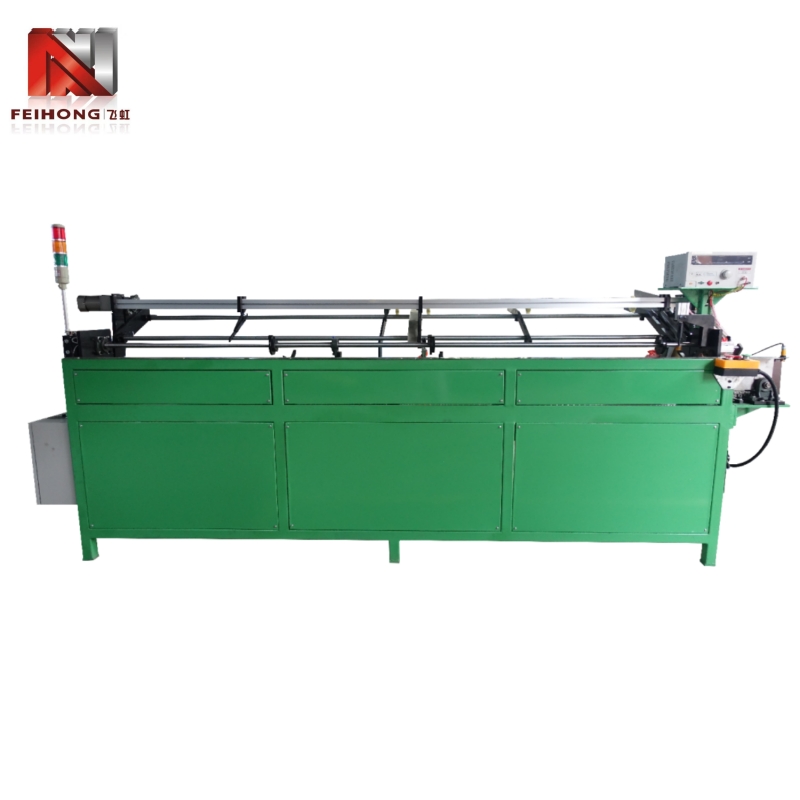

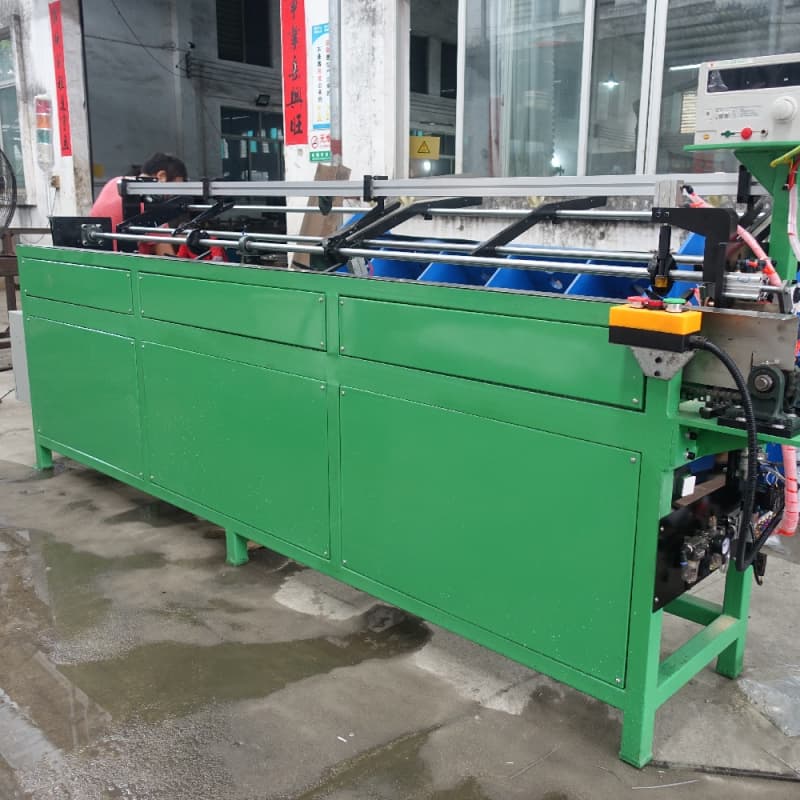

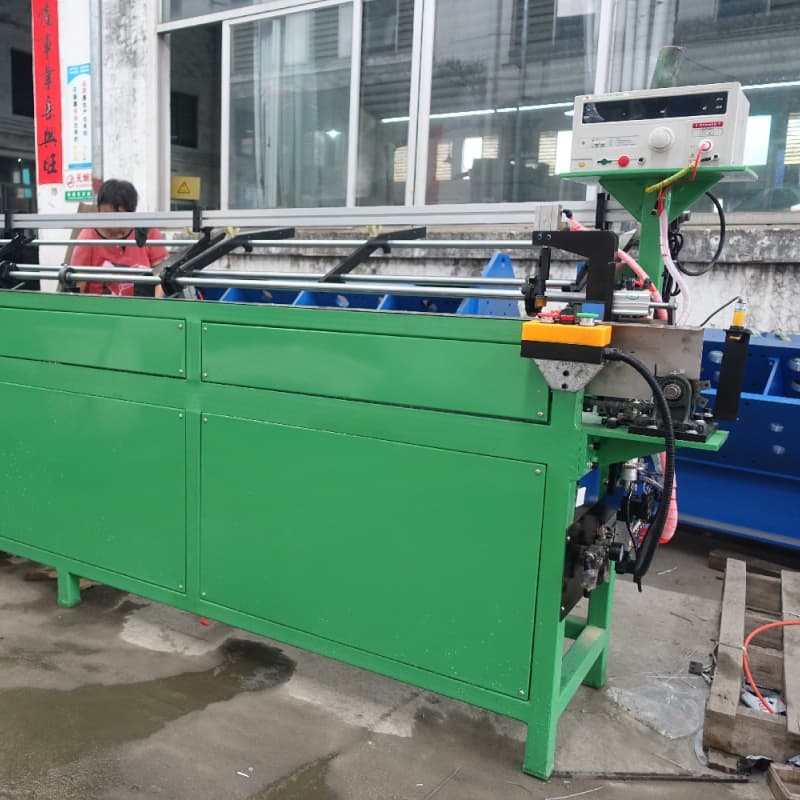

Automatic Tube Shrinking Post Inspection Feeding Machine Full Auto Feeding Checking Sorting Machine for Electric Heating Tube Production Line

Model:FH-132

After the tube shrinking process is completed, the finished shrunk tubes are automatically transported to the inspection station by the feeding system. The equipment conducts precise dimensional and appearance inspection on each processed tube in real time. Qualified tubular workpieces will be automatically delivered to the next production procedure for continuous processing. Meanwhile, unqualified tubes will automatically fall off at the sorting position, which can be manually removed and reprocessed separately. The whole process realizes unmanned continuous circulation, avoiding missed detection and misjudgment caused by manual operation.

Detection tube length (mm):
200-6000
Detected pipe diameter (mm):
synchronized with the pipe shrinking machine
Detection range:
resistance, withstand voltage, length
Control mode:
PLC+touch screen
Detection speed:
with the speed of the shrinking machine
Suitable for tubular:
round tube
Power:
1.1KW
Voltage:
three-phase 380V/three-phase 220V/single-phase 220V
Volume (mm):
1200*600*1200 (1 meter)
Weight:
400KG

Send Inquiry

Alibaba

Product Description

This Post-Tube-Shrinking Automatic Feeding & Inspection Machine is specially developed for the automatic quality screening and conveying process after tube shrinking operation in electric heating tube production lines. It perfectly connects the tube shrinking process and subsequent processing procedures, realizing fully automatic feeding, precision inspection, qualified product conveying and unqualified product automatic sorting. The equipment effectively replaces traditional manual inspection and manual material handling, greatly improving production efficiency, reducing labor costs and ensuring stable and consistent product quality in mass production.
