Energy Storage Resistance Spot Welding Machine

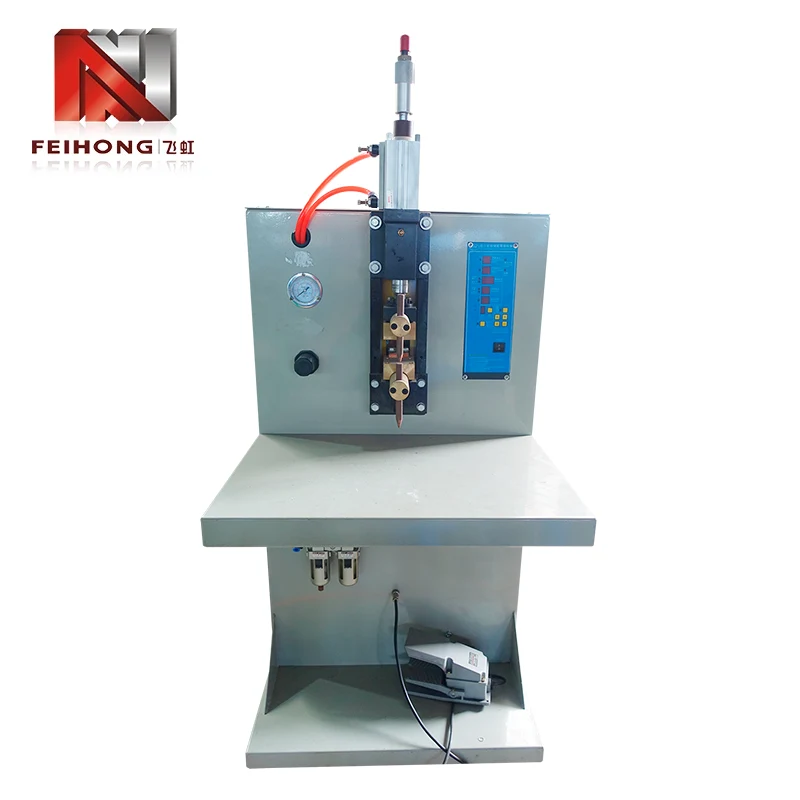

Feihong® is an established Energy Storage Resistance Spot Welding Machine factory presenting the FH-149A, a pneumatic-driven capacitor discharge resistance welder purpose-engineered for the specific joining requirements of electrical heating tube production. Manufactured by Zhaoqing Feihong Machinery & Electrical Co., Ltd. — a company founded in 1992 with decades of dedication to complete heating tube equipment solutions — this machine addresses the essential welding tasks between resistance wire and lead posts, and between lead posts and terminal lugs that define heating element assembly.

Machine Introduction

The FH-149A belongs to the resistance spot welding family but employs an energy storage architecture that differs from standard AC resistance welders. Rather than drawing continuous current directly from the mains during welding, the machine first charges an internal capacitor bank to a preselected voltage level, then releases that stored energy in a single, rapid pulse through the welding electrodes.

This energy storage approach delivers several inherent advantages for resistance welding. The short, high-energy pulse creates a concentrated heat zone at the weld interface, forming a solid weld nugget quickly while limiting heat spread to the surrounding base material. For thin resistance wires and small-diameter lead posts commonly found in heating elements, this controlled heat input helps prevent overheating or burn-through that can occur with longer-duration welding methods.

Pneumatic actuation handles electrode movement and force application, ensuring that downward pressure remains stable from weld to weld. Consistent electrode force is a critical parameter in resistance spot welding quality, as it directly affects contact resistance, heat generation, and final nugget formation.

Core Features

The Energy Storage Resistance Spot Welding Machine incorporates design characteristics tailored to the demands of heating tube manufacturing environments:

1. Capacitor Discharge Technology: Stored energy delivery provides stable, repeatable welding current independent of mains voltage fluctuations, ensuring consistent results across extended production runs.

2. Adjustable Energy Output: Capacitor charging voltage is continuously variable from 0 to 435V, giving operators precise control over weld energy to match different wire gauges and lead post dimensions.

3. Pneumatic Drive System: Pneumatically controlled electrodes deliver uniform pressure on every weld cycle, reducing operator fatigue and eliminating hand-pressure variability in manual welding setups.

4. Multi-Voltage Compatibility: Configurable for three-phase 380V, three-phase 220V, or single-phase 220V input power to match the electrical infrastructure of manufacturing facilities in different global regions.

5. Straightforward Operation: Intuitive controls and a simple working principle mean minimal training is required for production line operators, supporting faster deployment in new or expanding manufacturing facilities.

Performance Parameters

Below are the key technical specifications of the FH-149A resistance spot welding system, all sourced from official Feihong equipment documentation:

At 2 KVA rated power, the machine operates with relatively low mains demand while still delivering the high instantaneous current needed for quality spot welds — a characteristic benefit of capacitive energy storage welding systems.

Welding Applications

The Energy Storage Resistance Spot Welding Machine serves a focused set of joining operations within the heating tube production workflow, each representing a critical step in finished heating element assembly.

Resistance Wire to Lead Post Joints

Inside every electrical heating tube, a coiled or straight resistance wire generates heat when electrical current passes through it. This resistance wire must connect securely to lead posts (also called lead bars) that carry current from external terminals into the heating element. The FH-149A creates strong, low-resistance welded joints between these components, ensuring efficient power transfer and long service life of the finished heating tube.

Lead Post to Terminal Lug Joints

At the outer ends of the heating tube, lead posts connect to terminal lugs — the connection points where the heating element interfaces with external electrical wiring. Reliable welding at this junction is essential for preventing loose connections, excessive resistance, and overheating during real-world operation. The machine produces consistent, mechanically robust welds for this application as well.

Industry Scope

Heating tubes manufactured with the support of this equipment serve both industrial and civilian markets. Industrial applications focus heavily on cable heating systems, while civilian applications cover household electrical appliances and daily-use heating products. Feihong equipment supports manufacturers serving both segments of the heating element market.

Production Capability

Feihong maintains a vertically integrated manufacturing operation in Zhaoqing, Guangdong province, China. The factory houses six distinct workshop areas that collectively cover every stage of equipment production, from initial raw material preparation to final assembled machine testing.

1. Raw Material Cutting Workshop: Prepares metal stock and component blanks for downstream machining and fabrication.

2. Machining Center: Performs precision machining of critical mechanical components used in welding machines and other heating tube equipment.

3. Mold Production Workshop: Produces custom tooling, dies, and fixtures in-house to support both standard and specialized equipment builds.

4. Powder Filling Locomotive Room: Dedicated assembly and testing area for powder filling equipment used in heating tube manufacturing lines.

5. Pipe Shrinking Locomotive Room: Specialized workspace for production and calibration of pipe shrinking machinery.

6. Machine Assembly Workshop: Final assembly, electrical wiring, functional testing, and quality verification of completed machines before shipment.

Quality Assurance

Feihong applies a quality-first approach across all equipment manufacturing activities. The company has built its reputation on integrity-based operations and dependable equipment performance, earning trust from heating tube manufacturers that rely on consistent production results.

Because Feihong specializes exclusively in electrical heating tube manufacturing equipment — rather than producing generic industrial machinery — the engineering team maintains deep, application-specific expertise. Every design decision on the FH-149A is evaluated against real heating tube production requirements, resulting in a machine that aligns closely with actual factory needs rather than theoretical welding specifications.

Customers are welcome and encouraged to visit the Feihong factory to inspect equipment, review manufacturing processes, and discuss technical details directly with the engineering team. Direct factory engagement helps buyers verify build quality and ensure the equipment matches their specific production requirements before placing an order.

Beyond standard models, Feihong has a proven track record of researching and developing custom heating tube equipment with specialized structures to meet individual customer requirements. Past custom projects include industrial heating tube equipment, civil heating tube equipment, hot runner heating tube equipment, and heating tube equipment for aerospace and military machinery applications.

Common Questions

Q: What type of welding does the FH-149A perform?

A: The FH-149A performs energy storage resistance spot welding, also known as capacitor discharge spot welding. It uses stored electrical energy from capacitors to generate a short, high-current pulse that creates a welded nugget between two metal surfaces at the electrode contact points.

Q: Is this machine suitable for welding materials other than resistance wire and lead posts?

A: The FH-149A is specifically designed and configured for two primary welding operations in heating tube manufacturing: resistance wire to lead post (lead bar) welding, and lead post to terminal lug welding. For other welding applications, we recommend discussing your specific requirements with Feihong to evaluate equipment suitability.

Q: How is weld strength and quality ensured?

A: Weld quality is controlled through two primary adjustable parameters: capacitor charging voltage (0 to 435V), which determines the total energy delivered per weld, and pneumatic electrode pressure, which controls contact force. When properly set for the specific materials being joined, the machine produces consistent, repeatable welds across production runs.

Q: What is the expected production rate?

A: Under standard operating conditions with an experienced operator, the FH-149A can process approximately 30,000 pieces during an 8-hour shift. Actual throughput depends on factors including workpiece complexity, operator skill level, and material preparation efficiency.

Q: Can the machine be adapted to different factory power systems?

A: Yes, the FH-149A supports multiple input voltage configurations: three-phase 380V, three-phase 220V, and single-phase 220V. This allows deployment in manufacturing facilities with different electrical supply standards across various countries.

Q: Can I visit the Feihong factory before ordering?

A: Certainly. Feihong welcomes prospective customers to visit the factory in Zhaoqing, Guangdong, China. During your visit you can inspect finished equipment, observe the manufacturing process across all six workshops, and discuss technical specifications directly with our engineering staff.

Final Remarks

The Energy Storage Resistance Spot Welding Machine model FH-149A from Feihong is a purpose-built solution for the two critical resistance welding operations required in electrical heating tube production. Combining capacitor discharge energy storage technology with pneumatic electrode control, the machine delivers consistent, high-quality welds at a rated capacity of 30,000 pieces per 8-hour shift. Backed by a manufacturing facility with six specialized workshops and over 30 years of heating tube equipment expertise, Feihong provides heating pipe manufacturers with reliable equipment backed by deep application knowledge. Whether you are outfitting a new production line or replacing older welding equipment, the FH-149A offers the performance, adjustability, and operational simplicity that heating element manufacturers depend on.

We invite you to contact Feihong for detailed technical consultation or to arrange a factory visit and equipment demonstration.
