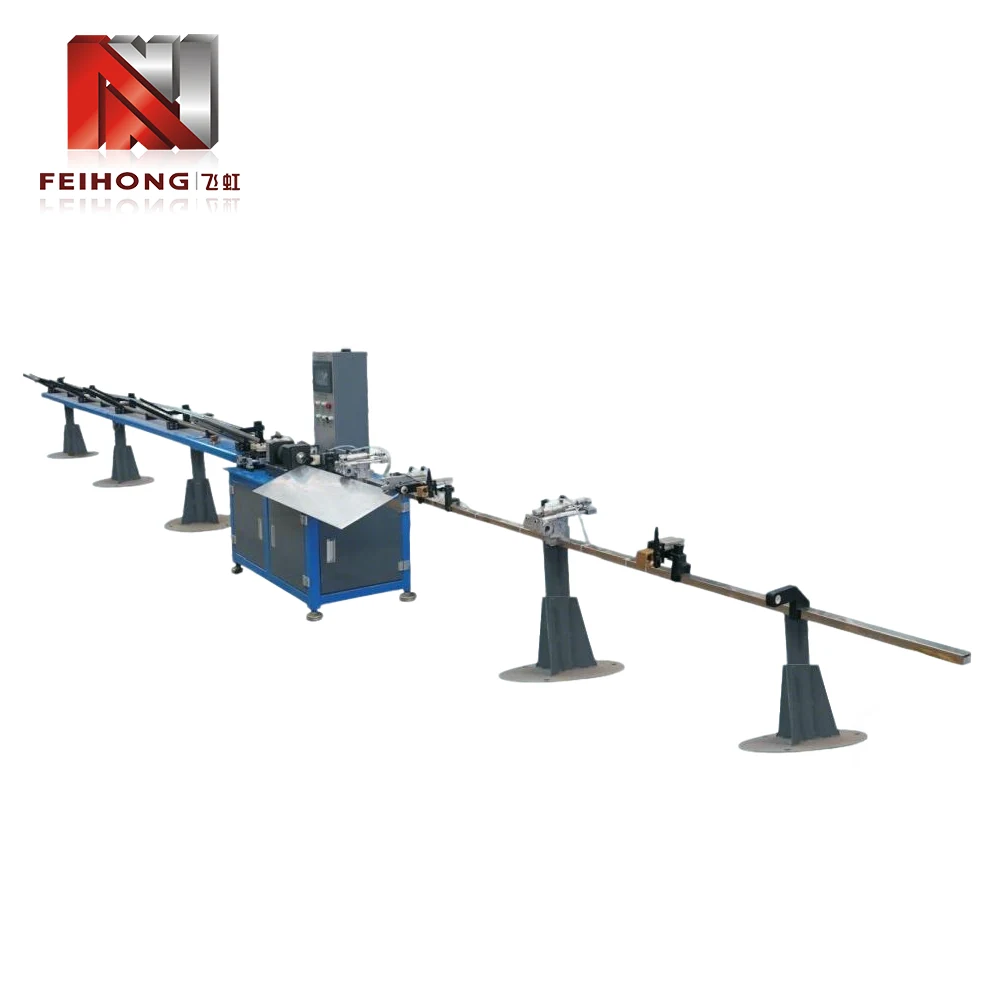

Automatic Feeding and Pipe Cutting Machine

Main structure and properties

FH-101A automatic feeding and pipe cutting machine is mainly used for special equipment for pipelength cutting. The machine is controlled by servo motor and operated by man-machine interface, withquicker and more stable pipe cutting speed and simple operation and maintenance. And one person canoperate more than one device at the same time; It is suitable for mass production. Cut copper pipe, iron pipe,aluminium pipe, stainless steel pipe and other materials. It is easy and fast to change specifications.

Main technical parameters

1. Applicable Diameter (mm): 5-15

2. Applicable pipe length (mm): 50-6000

3. Shift Quantity (Branch): 6000-20000

4. Speed: Adjustable

5. Feeding mode: automatic

6. Power: 1.0KW (servo motor)

7. Voltage: Three-phase 480V/three-phase 380V/three-phase 220V/single-phase 220V

8. Use air supply: 0.6Mpa

9. Volume of main engine (mm): 1500*800*1200

10. Host weight: 250KG
