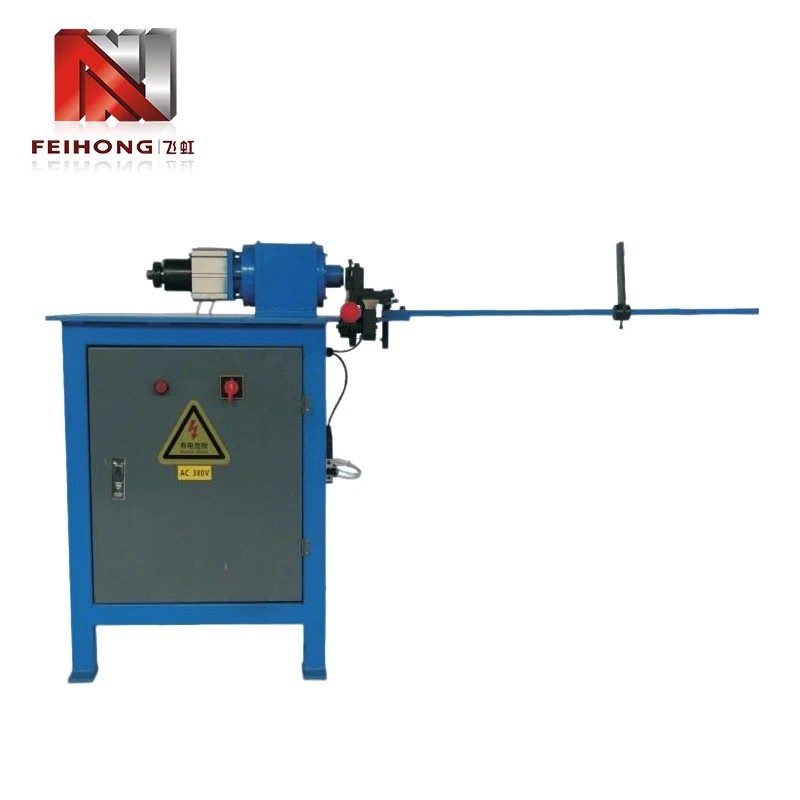

Manual Pipe Cutting Machine

Main structure and properties

FH-101B manual pipe cutting machine, designed to adapt to cut pipe specifications, a large range, the number of small and semi-automatic pipe cutting machine; machine using flexible collet clamping, making it faster and more convenient to change (specifications).

Main technical parameters

1. Applicable Diameter (mm):3-30

2. Applicable pipe length (mm): 50-6000

3.Shift Quantity(Branch): 6000-15000

4. Speed: Fixed Speed

5.Feeding method: manual

6.Power:0.75KW

7. Voltage:Three-phase 480V/three-phase 380V/three-phase 220V/single-phase 220V

8.Use air supply:0.6Mpa

9. Volume of main engine (mm):1500*800*1200

10. Main engine weight: 200KG
