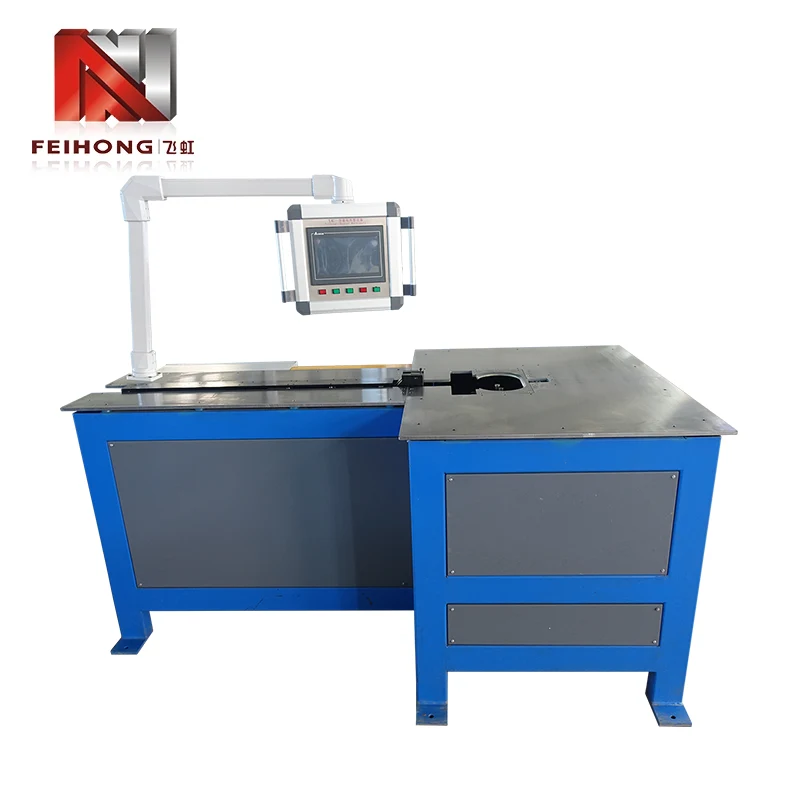

Multi-function Automatic CNC Pipe Bender

Main structure and properties

FH-140 multi-function automatic cnc pipe bender, is a high degree of automation bender; machine using servo motors (stepper motor) PLC, touch screen control operation, so that the machine's storage, delivery data, information, etc. greater, more accurate, as long as the PLC database in advance to enter the data to be operated with the type of graph, to be needed when the touch screen to draw this data can be operated.

Main technical parameters

1. Elbows: 3 Elbows

2. Diameter of elbow (mm): 5-10

3. Number of primary bends (branches): 1-3

4. One can store more than 20 kinds of data and patterns

5.Voltage: Three-phase 380/Three-phase 220/Single-phase 220

6. Power: 4KW

7. Volume(mm): 2100*1200*1000

8. Weight: 500KG
