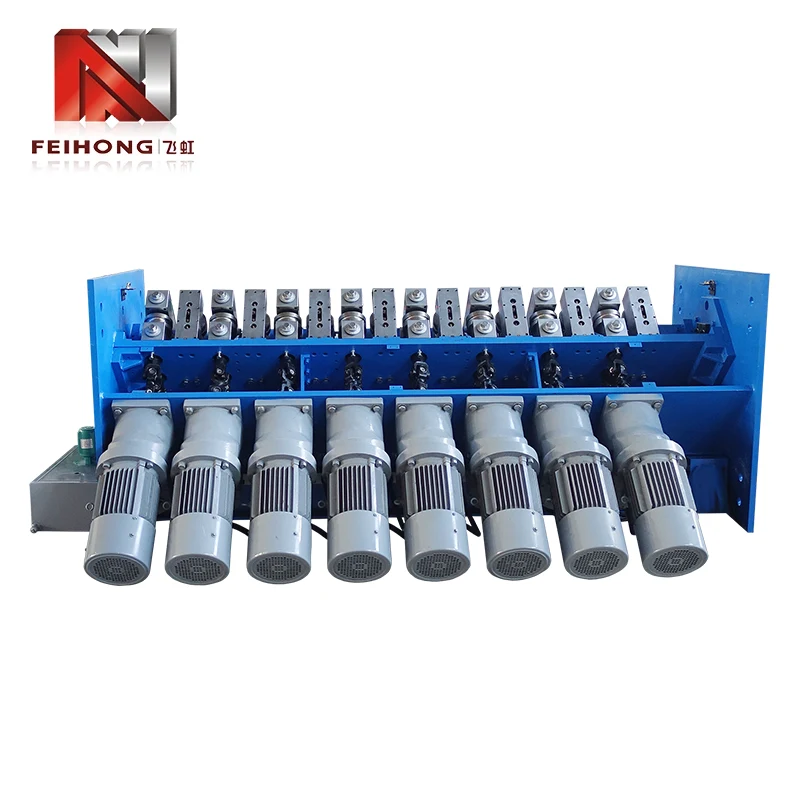

Heavy Duty Shrinking Machine

Main structure and properties

FH-B4 heavy duty shrinking machine, whether from the structure, body, cardan shaft, bearing, gear, motor power, etc., are enlarged and enlarged; Speed:2-15 meters per minute, mainly for heavy-duty pipe shrinker with large diameter, high density and long pipe.

Features: Within a certain diameter range, the machine has a one-time reduction of 7mm, without annealing in the middle, which is most suitable for shrinking large tubes, long tubes and wall thickness.

Main technical parameters

1. Universal Shaft Drive Structure: Double Universal Shaft Drive

2. Deceleration Structure: Gear Deceleration

3. Shrink pipe diameter (mm): 8-40/10-70

4. Shrink length (mm): 150 - infinite length

5. Shrinkage speed (m/min): 2-15

6. Die Material: Die Steel

7. Number of Sections: 8,12,16,18 and 20

8. Single group/power(KW): 1.5/2.2

9. Applicable objects: industrial pipes,composite pipes, cable ducts, etc.

10. Volume (mm): 2000*1900*1000(L*W*H)

11. Weight: 3500 KG
