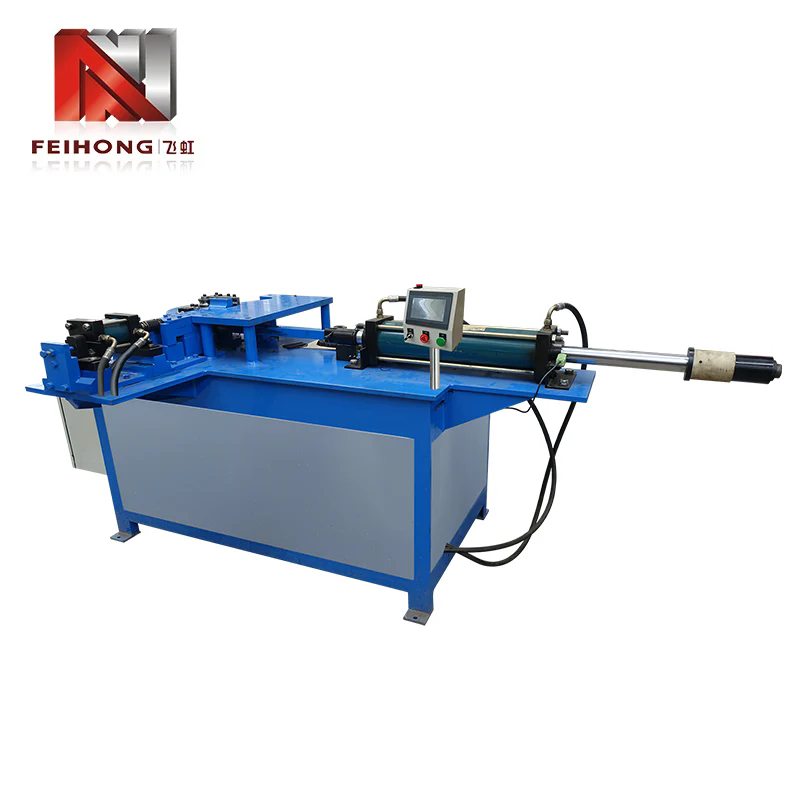

Why is the Flat Pipe Bender redefining precision bending in modern fabrication?

The Flat Pipe Bender is a specialized machine designed to bend flat profile pipes or tubes—that is, pipes whose cross-section is rectangular, elliptical or flattened rather than strictly round—into precise angular shapes with minimal deformation, wrinkle or collapse.

Product parameters

Below is a typical specification table for a high-performance Flat Pipe Bender — actual values will vary by model and manufacturer:

These parameters provide a foundational understanding of what the Flat Pipe Bender is capable of, what to check when selecting one, and serve as the basis for why it matters.

Why the Flat Pipe Bender is increasingly important

Why it matters in fabrication applications

• Flat profiles (rather than round pipes) are common in structural frameworks, decorative metalwork, HVAC ducts, enclosures and furniture. The need to bend these accurately without distortion drives demand.

• Traditional round-pipe benders often struggle with flat profiles: the risk of collapse, wrinkling, kinking or loss of section is higher. For example, standard tube-bending guidance explains that internal support (mandrel) or specialized tooling is required to maintain section integrity.

• With high precision, repeatable bends, the Flat Pipe Bender reduces scrap, increases throughput, and improves end-product aesthetics and structural performance.

• In modern lean/flexible manufacturing environments, the ability to rapidly switch tooling and bend different flat sizes (even with complex bends) gives competitive advantage.

• Trends toward lighter weight materials (aluminium, thin-walled steel) in furniture, automotive, architectural installations make accurate flat-profile bending even more critical.

Why advantages matter

• Precision & repeatability: When bending flat profile pipes, the machine must maintain wall integrity and correct angle, which traditional methods may not always deliver.

• Reduced deformation: Because tooling is designed for flat profiles, the risk of cross-section collapse, flattening, or excessive outer-wall stretching is minimized.

• Versatility: One machine supporting multiple dies for differing sizes and profiles means fewer machines, lower cost, and faster change-over.

• Cost-effectiveness: Less scrap, less rework, less downtime for tool changes — all reduce total cost per bent part.

• Future-proofing: As design complexity increases (curved furniture, architectural frames, HVAC custom ducts), machines with advanced flat-profile bending capabilities stand to see more usage.

Why the future trend is favorable

• The move toward custom and small-batch manufacturing (versus mass-production) means machines must be flexible, precise and quick to setup — qualities the Flat Pipe Bender delivers.

• Integrations with CNC controls, servo drives, advanced sensors and Industry 4.0 capability are coming into flat-profile bending machines, enabling smarter production, monitoring and automation.

• Sustainability pressures (light-weight materials, fewer joins/welds) increase demand for machines that can bend cleanly without weakening material or creating distortions.

• As construction, furniture and architectural metal-work industries increasingly adopt flat-profile piping/tubing and visually exposed metalwork, the demand for clean, precise bends (no visible tool marks or distortion) rises.

How the Flat Pipe Bender works and how to select, operate & maintain one

How it works

• The flat profile pipe is secured into a die or tooling set built for its specific cross-section.

• The machine uses a forming die, clamp block, wiper die (in some designs) and pressure shoe (or roller) to bend around a center-line radius while maintaining section shape (similar to tube bending but adapted for flat profile).

• The machine controls the bending angle, radius, tooling engagement and can compensate for spring-back depending on the material.

• Specialized flat-profile dies prevent the outer wall from stretching excessively and inner wall from collapsing or wrinkling — tooling may include adjustable supports or mandrels if required.

• After bending, the profile may receive finishing (deburring, straightening of ends) but the critical value is that the bend is accurate, clean and structurally sound.

How to select the right machine

When choosing a Flat Pipe Bender, consider the following criteria:

• Profile size range: Ensure the machine supports the largest and smallest flat profiles you will bend (in both width and thickness).

• Minimum radius: Confirm the machine can bend to the required minimum radius without damaging the profile (remember smaller radius on flat profiles increases risk of collapse).

• Angle capability and repeatability: Check the angle range and repeatability tolerance (e.g., ±0.5° or tighter).

• Tooling change-over: How quickly and easily can you switch tooling/dies to handle different profiles? This impacts throughput.

• Material compatibility: Verify that the machine is rated for the material types you use (steel, aluminium, stainless, copper) and wall-thickness.

• Drive mechanism and control: Electric servo drive offers high precision; hydraulic can offer force for thicker profiles; CNC control allows storing bending programs for repeat jobs.

• Support and maintenance: Select a manufacturer with good global service, spare parts availability and training.

• Footprint and future flexibility: The machine should fit your floor-space and allow for future upgrades (e.g., automation, sensor monitoring).

How to operate and maintain it for best results

• Before bending, inspect tooling/dies for wear, alignment and compatibility with the specific profile. Worn tooling increases distortion risk.

• Clamp the flat profile properly in the die to prevent movement during bending. Mis-clamping is a common cause of distortion and inaccurate bends.

• Select correct radius and angle program, taking into account spring-back, material type, wall thickness and profile geometry.

• Monitor the bending process for signs of flattening, wrinkles or collapse — especially when bending tight radii on flat profiles. Components of the machine (clamp, wiper die, support) should prevent these defects.

• After bending, check the product against dimensional tolerances: angle, radius, section integrity, no visible kinks or folds.

• Preventive maintenance: Regularly inspect hydraulic/servo system, lubrication of moving parts, tooling alignment, die condition and safety devices.

• Replace tooling when worn: Because flat profile bending places high stress on tooling, early replacement prevents scrap and downtime.

• Training and safety: Ensure operators understand the flat profile bending process, potential pitfalls (such as internal collapse or thinning of outer wall) and safe operation of the machine.

• Record-keeping: For repeat jobs, save bending programs, tooling settings and material data—this helps maintain consistency over time and reduces setup errors.

Common customer questions (FAQ)

Q: What is the minimum bend radius for flat-profile pipes using this machine?
A: The minimum bend radius depends on the material and thickness, but a good rule of thumb is to maintain a center‐line radius of at least three times the overall height (thickness) of the flat profile to prevent collapse or wrinkling.
Q: Can standard round-pipe bending machines bend flat profiles without special tooling?
A: While some round-pipe benders may attempt to handle flattened profiles, they typically lack the specialized tooling and support required for flat profiles and may result in poor section integrity (wrinkles, collapse, uneven wall thickness). For best results, use a machine designed specifically for flat-profile bending.

Future trends, brand positioning, and conclusion

Future trends in flat-profile pipe bending

• Automation & smart tooling: Machines will increasingly integrate sensors to monitor bending force, tool wear, profile deformation and provide real-time feedback—and link to Industry 4.0 systems for analytics, predictive maintenance and part-traceability.

• Flexible manufacturing: As production shifts toward smaller batches, customizable architectural frames, bespoke furniture and rapidly changing designs, flat-profile benders with fast tooling change-over, stored programs and CNC integration will become more valuable.

• Light-weight materials & complex shapes: With a rise in aluminium, thin-walled steel and exotic alloys, flat-profile bending machines will need enhanced control and tooling to maintain integrity while bending tighter radii or more complex profiles.

• Sustainability & waste reduction: Precision bending reduces scrap and energy usage; machines optimized for flat profiles contribute to sustainable manufacturing practices.

• Global service & modular upgrades: As users adopt these machines worldwide, manufacturers offering modular upgrades (servo to CNC to automation) and global service networks will stand out.

The brand Feihong stands ready to offer high-quality Flat Pipe Bender machines that meet the above specification and future-proofing criteria. For any inquiries about model selection, tooling or customized solutions, feel free to contact us and our product specialists will assist you immediately.
