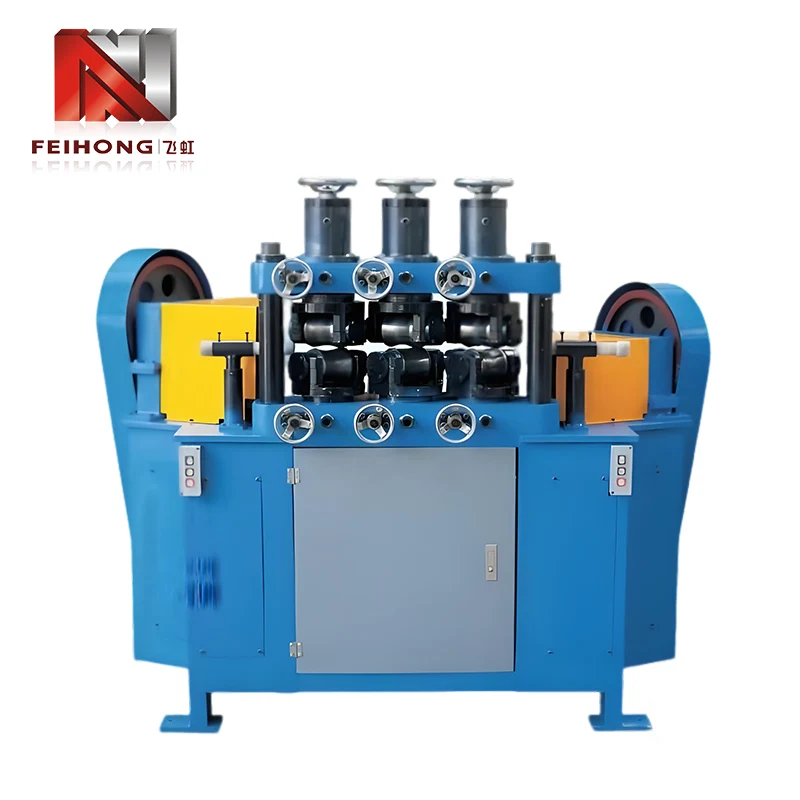

FH-3G Straightening Machine

Main structure and properties

FH-3G straightening machine is mainly used for straightening and repairing bent and deformed pipes in the process of pipe making or annealing; the machine is combined with 3 groups or (5 groups) roll assemblies coupled with transmission and motor. Different pipe diameter straightening,straightening of empty and filled pipes within a certain range does not require replacement of straightening wheels. The machine is equipped with frequency converter, used to control the speed adjustment of different tubes.

Main technical parameters

1.Applicable Diameter Range(mm):5-20

2.Applicable Diameter Length (mm):350-6000

3.Speed:Frequency Converter(Speed Adjustment/Fixed Speed)

4.Voltage:Three-phase480V/three-phase 380V/three-phase 220V/single-phase 220V

5.Power:1.5(2.2)KW*2

6.Straightening

group:3sets/5sets

7.Machine Volume(mm):1500*1300*1500

8.Machine weight:600KG/800KG
