Large Diameter Pipe Shrinking Machine

Main structure and properties

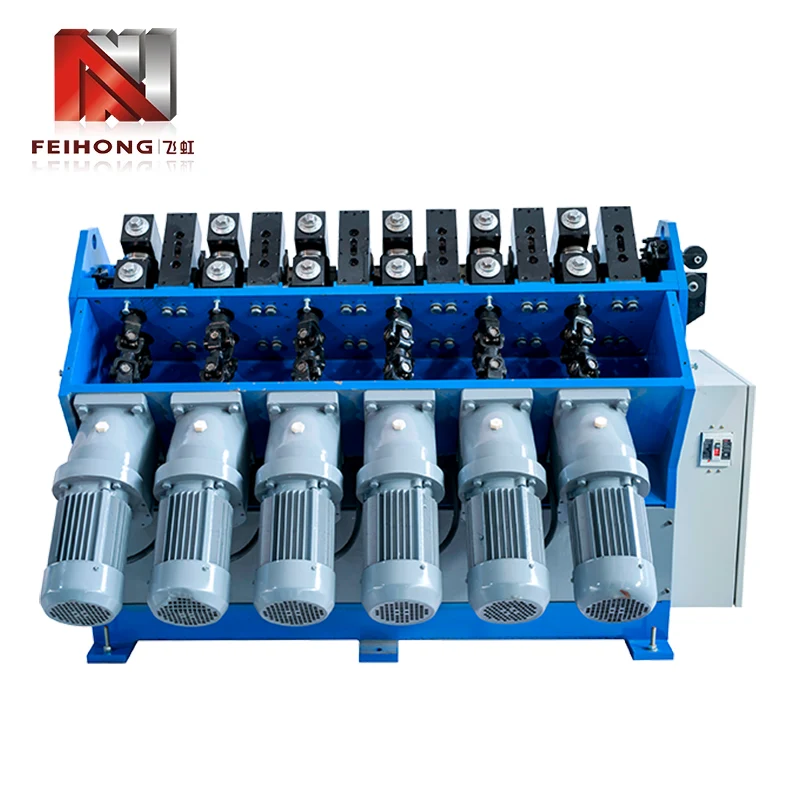

FH-B3 large diameter pipe shrinking machine is a large module gear reducer specially designed for large diameter long pipe. Heavy-duty double cardan shaft is used to connect motor with roll shaft in the middle, which makes the machine drive parallel and increases the torque, thus reducing the direct acceptance force between motor and roll shaft and protecting the deceleration motor.

Main technical parameters

1. Cardan shaft transmission structure: double cardan shaft transmission

2. Deceleration structure: gear deceleration

3. Reduced tube diameter (mm): 5-25

4. Reduced tube length (mm): 150-10000

5. Shrinking speed: constant speed

6. Mold material: alloy, mold steel

7. Number of paragraphs: 8,12,16,18

8. Single group/total power (KW): 1.1*number of segments

9. Voltage: three-phase 380V/three-phase 220V/single-phase 220V

10. Suitable for pipes: copper pipes, iron pipes, aluminum pipes, Stainless steel pipe, composite pipe, etc.

11. Volume (mm): 1850*1600*1300(L*W*H)

12. Weight (12 segments): 2500 KG
